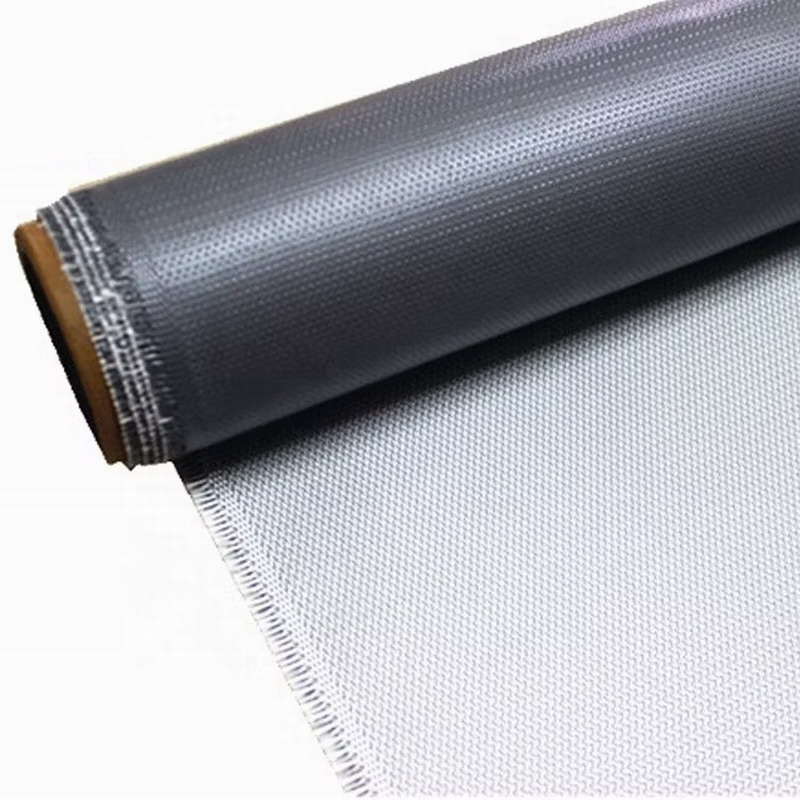

780g Single Side Silicone Coated Fiberglass Fabric

Silicone-coated fiberglass cloth combines the high-temperature resistance and strength of fiberglass with the water, oil, and chemical resistance of silicone. This makes it a versatile material for various applications, especially where fire hazards, high temperatures, and harsh environments are a concern.

Quantity:
Availability:





Inquire Add to Basket

Model:
EWS780-1-120SI
Brand:
Mingchen

780g Single Side Silicone Coated Fiberglass Fabric heat resistant fiberglass fabric thermal insulation fiberglass cloth

Product Description

Basic information

Features

Application

FAQ

Silicone-coated fiberglass cloth combines the high-temperature resistance and strength of fiberglass with the water, oil, and chemical resistance of silicone. This makes it a versatile material for various applications, especially where fire hazards, high temperatures, and harsh environments are a concern.

Single side coating fiberglass cloth features in heat resistance 287C° (Fiberglass cloth 550 C°), operation temperature -20C°-287°, double side coating fiberglass cloth the instant heat resistance can reach 600 C°.

Model No.:	Silicone Fiberglass	Weave Type	Plain woven
Glass grade	E-glass	Alkali	Free
Density(g/m²)	200-510	Thickness1(coating) Thickness2(cloth)	40-250g/SQM 0.2-0.4.0mm
Width	100-216cm or custom	Length/Roll	50m or custom
Bobbin diameter	58mm/76mm/83mm	Roll Diameter	350-600mm
MOQ/order	10 Rolls	Temp Resistant	-20C°-287°

High-Temperature Resistance: The base fiberglass fabric can withstand temperatures up to 1000°F (550°C), while the silicone coating provides continuous protection up to 550°F (287°C).

Fire Resistance: Silicone-coated fiberglass is inherently flame retardant and can be used to create welding blankets, fire curtains, and other protective barriers.

Water and Oil Resistance: The silicone coating makes the fabric waterproof, oil proof, and resistant to various chemicals.

Flexibility and Durability: The material offers good flexibility and tear resistance, making it suitable for dynamic applications and complex shapes.

UV and Weather Resistance: Silicone coating also provides protection against UV radiation and general weathering.

Low Smoke and Flame Retardant: Silicone-coated fiberglass can be engineered to meet stringent smoke and flame retardant standards.

Fire protection: Uses in welding blankets, fire curtain and fireproof barriers to protect against flames, sparks, and molten metal splashes.

Heat protection: Provides insulation in high-temperature environments, such as industrial settings and construction projects for heat protection.

Weatherproofing: Uses in roofing membranes, expansion joints, and other construction applications due to its water and UV resistance for weatherproof.

Expansion Joints: Handles thermal variations and movement in expansion joints and other dynamic applications.

Removable Insulation Covers: Offers a flexible and durable solution for insulating pipes, machinery, and other equipment.

Flexible Duct Connectors: Provides high-temperature resistance, sealing, and vibration absorption in flexible ductwork.

Chemical and Oil Resistant Barriers: Protects against chemical spills and oil leaks in industrial environments.

1. If made in Alkali-Free E-glass fiberglass filament?

Yes, Alkali-Free

2. If Free Sample can be supported?

Yes, free sample can supply you for testing.

3. If tape can be customized?

Yes, we offer design-based customization, also sample-based customization services.

4. What’s the delivery time for bulk orders

15-20 working days after order confirmed
