High-Performance Basalt Products for Extreme Thermal Protection
At Jiangxi Mingchen New Materials Co., Ltd., we manufacture and supply high-performance Basalt Products. These materials provide superior thermal insulation, extreme heat resistance, and exceptional chemical stability. They are ideal for demanding industrial applications. Extracted from 100% natural volcanic rock, our basalt fibers feature a unique molecular structure. This provides higher tensile strength and greater acid resistance than standard E-glass. Our continuous basalt fiber solutions serve as a reliable shield against flames, thermal radiation, and mechanical wear.
To help you select the correct specifications for your thermal management systems, we outlined our standard industrial-grade parameters below.
| Engineering Parameter | Standard Technical Specifications |
|---|
| Continuous Operating Temperature | -260°C to +800°C (-436°F to +1500°F) |
| Maximum Short-Term Exposure | Up to 1000°C (1832°F) with specialty coatings |
| Available Thickness Range | 1.5mm to 6mm (1/16" to 1/4") |
| Standard Roll Widths | 25mm, 50mm, 75mm, 100mm, and custom options |
| Filament Diameter | ≥ 11 microns (non-respirable, eco-safe) |
| Certifications & Compliance | RoHS, REACH, and 100% Asbestos-Free |
Our Basalt Products: Fiber Tape & Fabric Portfolio
We manufacture continuous basalt fibers in several form factors. This addresses the unique geometry of industrial piping, exhaust systems, and electrical machinery. Each configuration balances thermal dissipation, structural flexibility, and easy on-site installation.

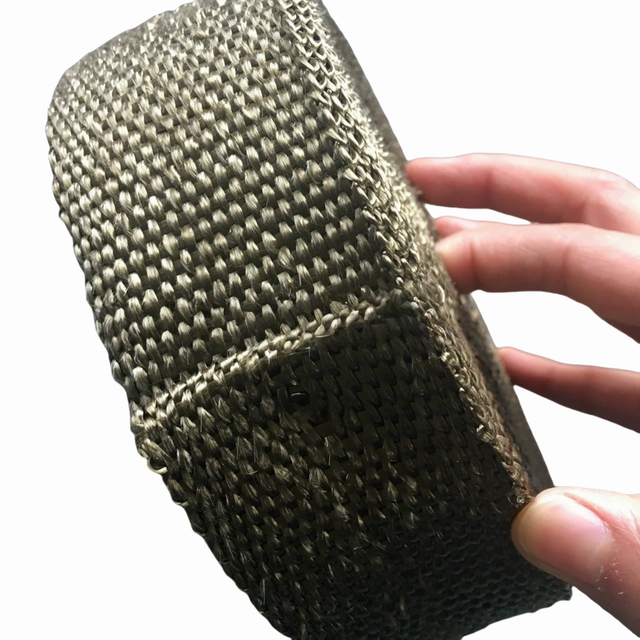

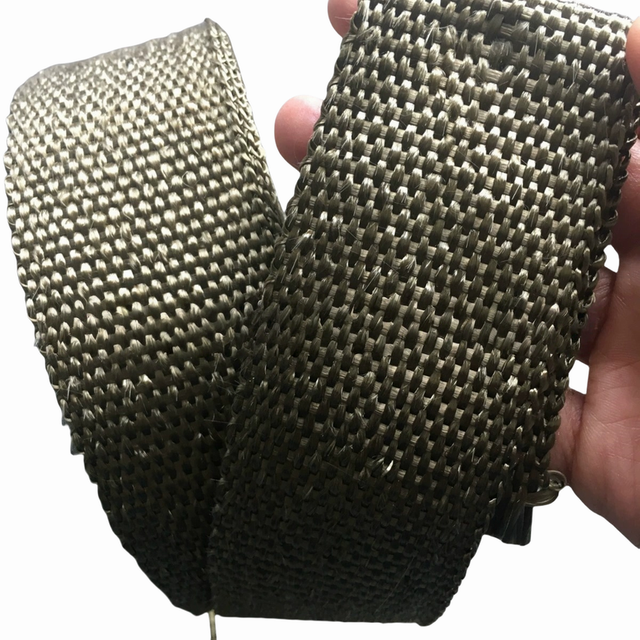

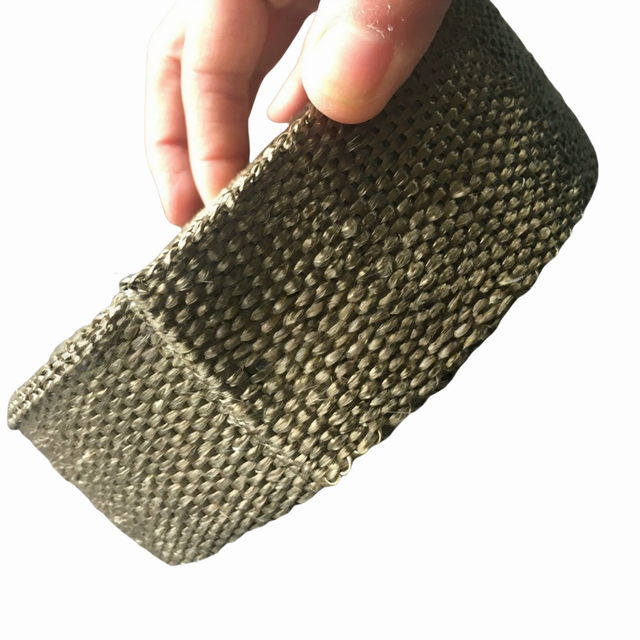

Standard Woven Basalt Tapes
Our standard high-density woven tapes offer structural stability under intense heat. These non-stretching tapes exhibit exceptional impact resistance and dimensional stability. They are ideal for wrapping heavy machinery exhausts and insulating industrial pipelines. If you require specialized thickness, our heat protection basalt fiber tape delivers excellent thermal isolation. This prevents radiative heat damage to surrounding components.
Self-Adhesive (PSA) Basalt Tapes
Complex installations often involve intricate manifold designs or vertical pipe routing. For these challenges, we manufacture basalt tapes backed with a Pressure-Sensitive Adhesive (PSA). This integrated PSA backing acts as a temporary installation aid. It secures the tape firmly around complex geometries. As machinery reaches operating temperatures, the adhesive cures cleanly. This leaves the tightly wrapped basalt matrix to provide permanent thermal insulation.
Custom Coated Basalt Fabrics
Raw basalt can face severe mechanical abrasion, oil saturation, or chemical splashes. To counter this, we supply custom-coated basalt fabrics. Specialized coatings, like high-temperature vermiculite, enhance abrasion resistance and chemical barrier properties. These advanced finishes allow the fabric to withstand short-term thermal spikes up to 1000°C without melting.
OEM & Custom Basalt Products: 3-5 Day Prototyping
As a highly agile OEM partner, we leverage flexible production lines and extensive composite expertise. We understand standard sizes cannot fit every engineered system. You might need a design-based modification or a sample-based customization. Our technical department is equipped to deliver. We can develop custom-dimension woven tapes or specific weave patterns quickly. Trial samples are completed within just 3 to 5 working days.
We offer free samples for client testing and verification. This ensures our materials meet your rigorous safety standards before full-scale procurement. Please contact our technical sales team to request a sample and discuss your project specifications.
Technical & Environmental Advantages of Basalt Products
Choosing the right thermal barrier ensures operator safety and machinery longevity. Our basalt configurations offer clear technical advantages over traditional fiberglass or ceramic options.
Broad Thermal Operating Envelope
Standard fiberglass materials often degrade when exposed to extreme thermal cycling. In contrast, our basalt fiber retains its mechanical integrity across a broad operating window. It performs well from cryogenic conditions at -260°C to intense heat at +800°C. Within this range, the basalt matrix resists thermal shock and melting. It does not undergo off-gassing, keeping your work environment free of toxic fumes.
100% Eco-Safe and Asbestos-Free
Workplace safety is a cornerstone of our manufacturing philosophy. We engineer all continuous basalt filaments with a safe diameter of 11 microns or greater. This ensures they are non-respirable and safe for operators to handle. Our raw materials are completely asbestos-free. They comply fully with major international safety standards, including RoHS and REACH.
Key B2B Applications for Basalt Products
Due to their rugged durability and high thermal tolerance, our continuous basalt solutions serve many heavy industries globally. In the automotive and aerospace sectors, they act as heat shields and exhaust header wraps. This protects sensitive electronic cabling and improves engine efficiency. For marine applications, our products insulate engine piping and turbocharger housings. This prevents burn injuries and mitigates fire hazards in confined spaces. Chemical plants and refineries apply our basalt wrap to high-temperature transport lines. This prevents thermal loss and provides chemical-resistant protection. Additionally, electrical infrastructure uses our materials to insulate heavy-duty transformers. Metallurgical facilities deploy them as high-temperature curtains to guard against molten metal splashes.
Reliable Basalt Products Manufacturer: Global Supply & Warranty
As an established high-performance composite material manufacturer, Jiangxi Mingchen New Materials Co., Ltd. provides a reliable global supply chain. We offer competitive pricing without sacrificing product quality. Our optimized production workflows enable a rapid delivery lead time. Bulk orders typically ship within 15 to 20 working days, minimizing project downtime.
Every shipment undergoes rigorous quality control. We back all orders with a comprehensive 2-year warranty period post-shipment. Partner with an experienced basalt products supplier who values quality and customized service. Contact us today to receive a prompt quotation for your custom manufacturing requirements.
Frequently Asked Questions (FAQ)
What is the maximum operating temperature for your basalt products?
Our basalt fiber tapes and fabrics offer a continuous operating temperature range of -260°C to +800°C. For short-term exposure, our specialized coated variants can withstand thermal spikes up to 1000°C.
Can I request custom widths and thicknesses for basalt tapes?
Yes, we provide comprehensive design-based and sample-based customization. Our flexible production lines allow us to prototype custom widths, thicknesses, and weave types within 3 to 5 working days.
Are your basalt fiber products safe to handle and asbestos-free?
Absolutely. We craft all our products from 100% natural volcanic rock. They are strictly asbestos-free. We use continuous fiber filaments with diameters of 11 microns or greater. This ensures they are non-respirable and completely safe for human handling.
What are your lead times and warranty terms for bulk orders?
We offer a short delivery lead time of 15 to 20 working days for bulk B2B orders. To guarantee long-term performance, we back all shipped products with a comprehensive 2-year warranty.
