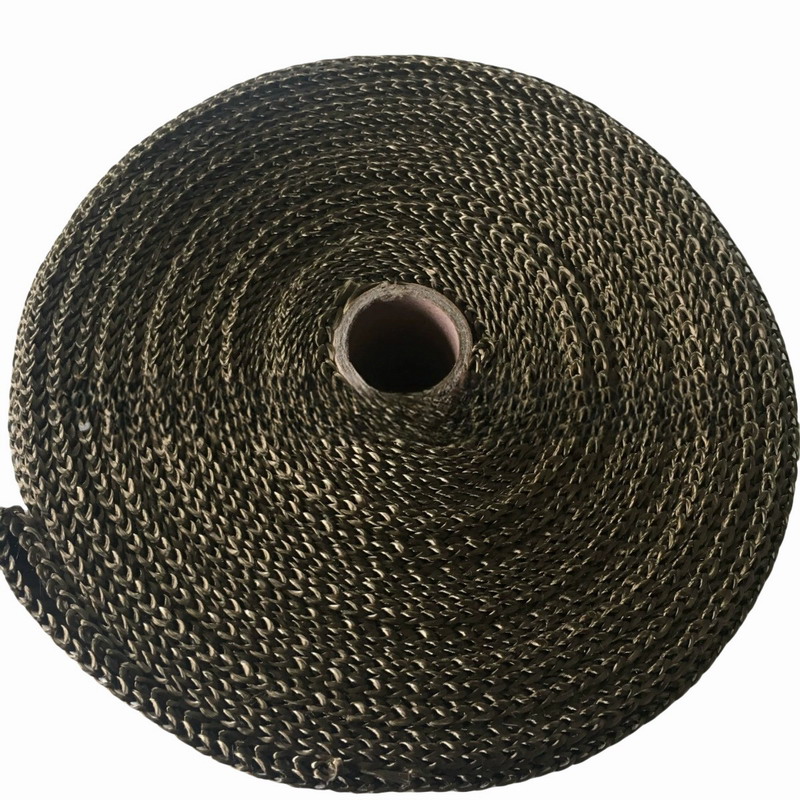

1.5mm 50mm Durable Basalt Fiber Tape for Automotive Exhaust Header Heat Insulation

1.5 mm thickness 50mm width Titanum basalt fiber tape to wrap the automotive exhaust header for heat insulation to lower the sounds and temperature under the hood, It's made from a dark and shiny fiber derived from volcanic lava rock, It features in offering resistance to operating temperatures up to 1500°F (815°C) and peak temperatures up to 2000°F (1095°C).

Quantity:
Availability:





Inquire Add to Basket

Model:
BT1500-50
Brand:
Mingchen

Basalt Fiber Automotive Exhaust Header Wrapping Tape

Product Description

Basic information

Features

Application

FAQ

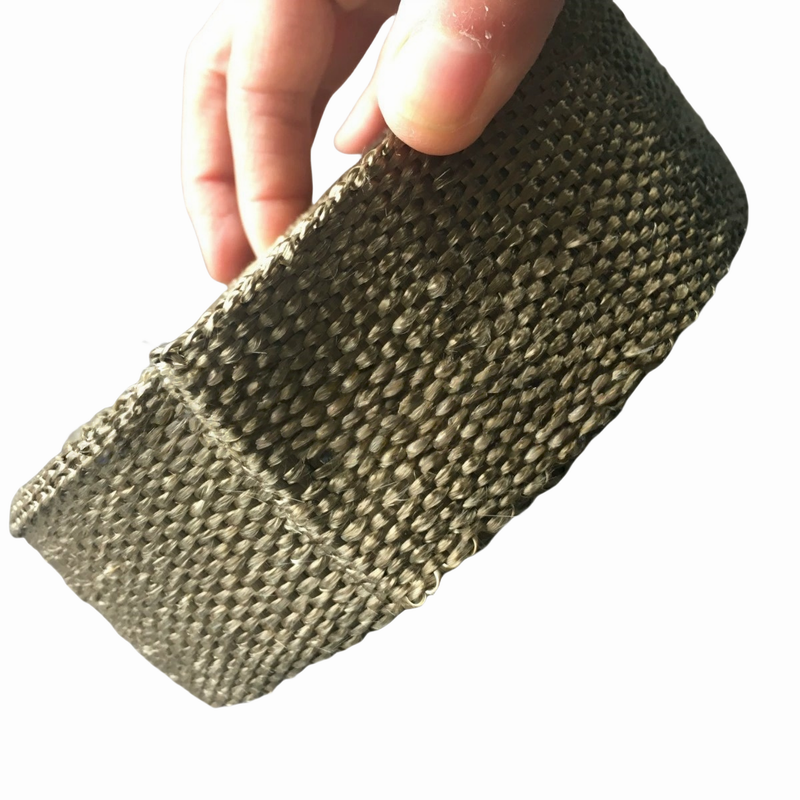

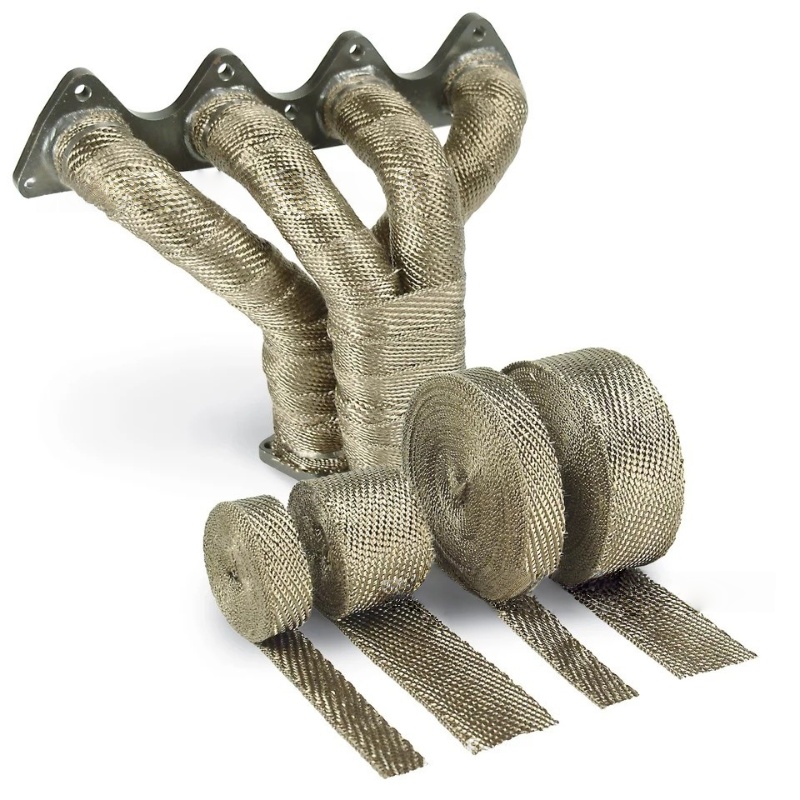

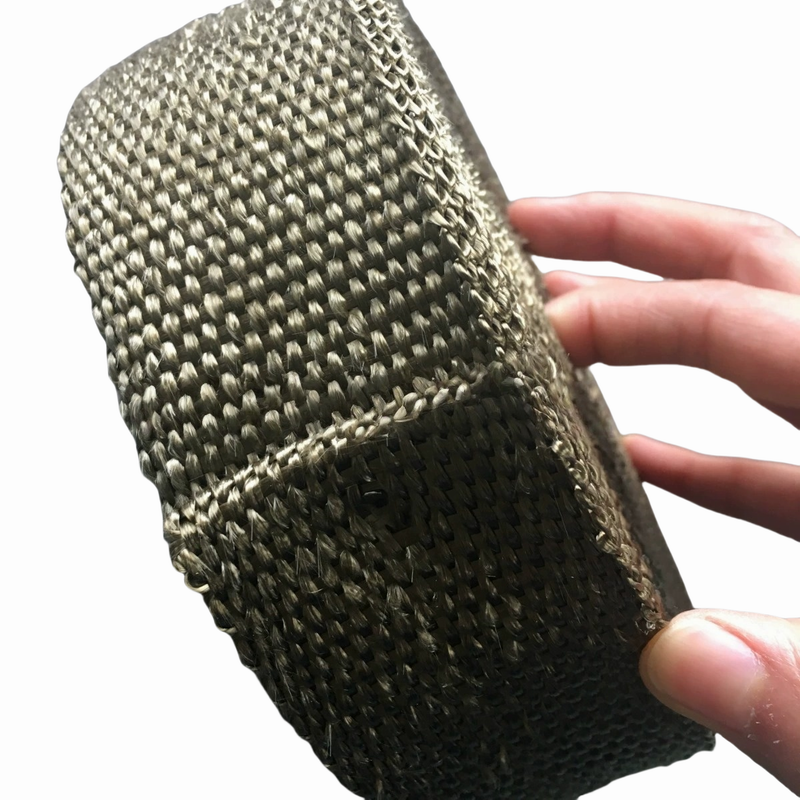

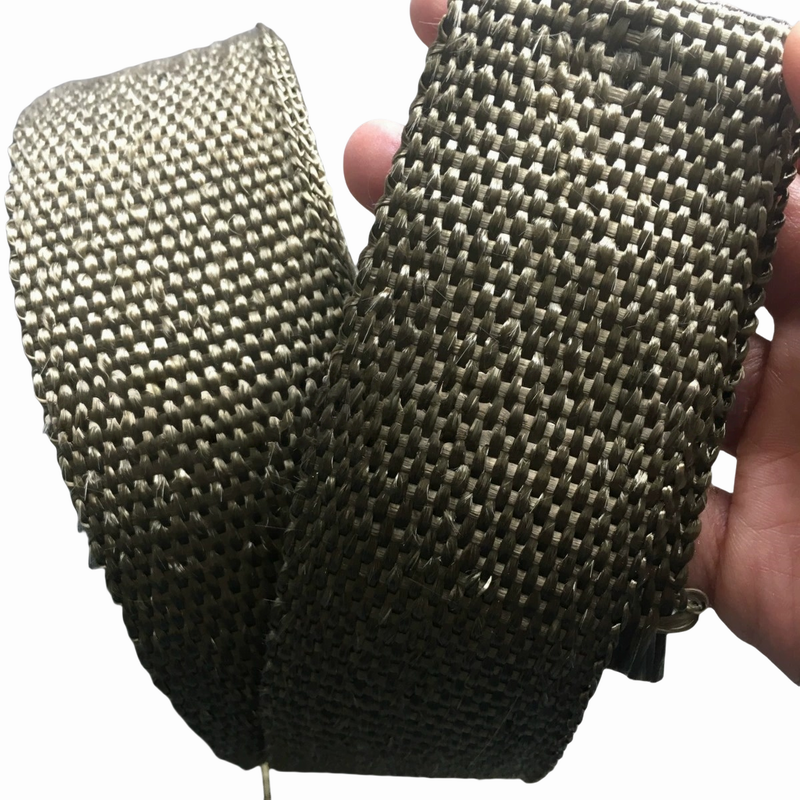

1.5 mm thickness 50mm width Titanum basalt fiber tape to wrap the automotive exhaust header for heat insulation to lower the sounds and temperature under the hood.

It's made from a dark and shiny fiber derived from volcanic lava rock, It features in offering resistance to operating temperatures up to 1500°F (815°C) and peak temperatures up to 2000°F (1095°C).

Model No.:	BT1500-50	Weave Type	Plain woven
Basalt grade	E-glass	Alkali	Free
Density(g/m²)	1500±20	Thickness	1.5mm±0.2

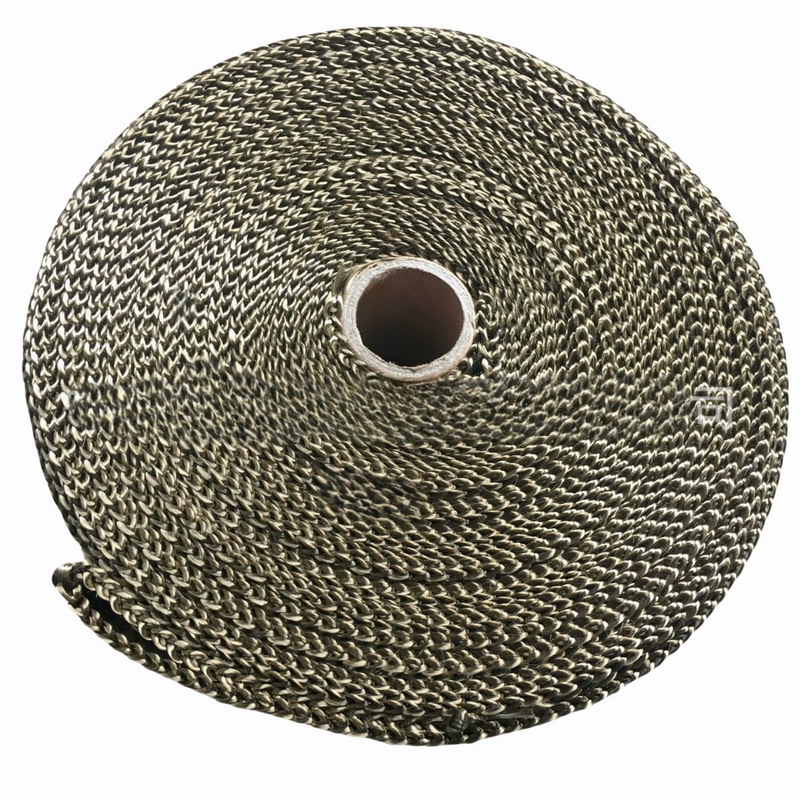

Width	50mm or custom	Length/Roll	5m/10m/15m or custom
Bobbin diameter	14mm or custom	Roll Diameter	80-150mm or custom
MOQ/order	100 Rolls	Package	Carton

Made in Alkali-Free High density E-Glass basalt fiber filament

Flame retardant and fireproof performance when the tape winds on pipelines

High temperature and corrosion, abrasion resistant for protection

Thermal insulation when tape winds on the pipes need heat keeping

Strong pulling resistance when the tape tightly winding or binding something

Heat resistant prevents employees from burning themselves when they bump into or touch the metal flue pipe.

Low thermal conductivity(W/(m.k)≤0.03

Max application temperature 900 C°, continuous operation temperature 700 C°

Basalt is 25% stronger than fiberglass wraps, easy to wrap, and vibration and chemical resistant

Roll width and Length can be customized

Bobbins can be 14mm or custom for choose

Basalt tapes are particularly well suited for applications such as heat shield, for example, exhaust systems; fire protection; reinforcement and vibration-damping material in composites; high-temperature resistant material for cable manufacturing, Insulation of tubes and exhaust pipes, electric insulation

Basalt fabrics are typically used in place of fiberglass or carbon fiber and are suited for applications requiring high mechanical strength. Basalt fabrics regularly outperform standard E-glass in demanding applications and are close in performance to specialty fibers like S-glass, carbon, and chemical resistant glass but at a fraction of the cost.

This fabric is tightly weaved and uniquely suited to be used as a high temperature barrier, heat containment in exhaust systems in the automotive, aerospace, heavy equipment, and transportation industries.

This fabric is also compatible with epoxy/polyurethane resins.

High-Temperature Insulation

Thermal Barrier for cable and pipe

Fire Protection

Gasket and Sealing

Safety Clothing & Gear manufacturing

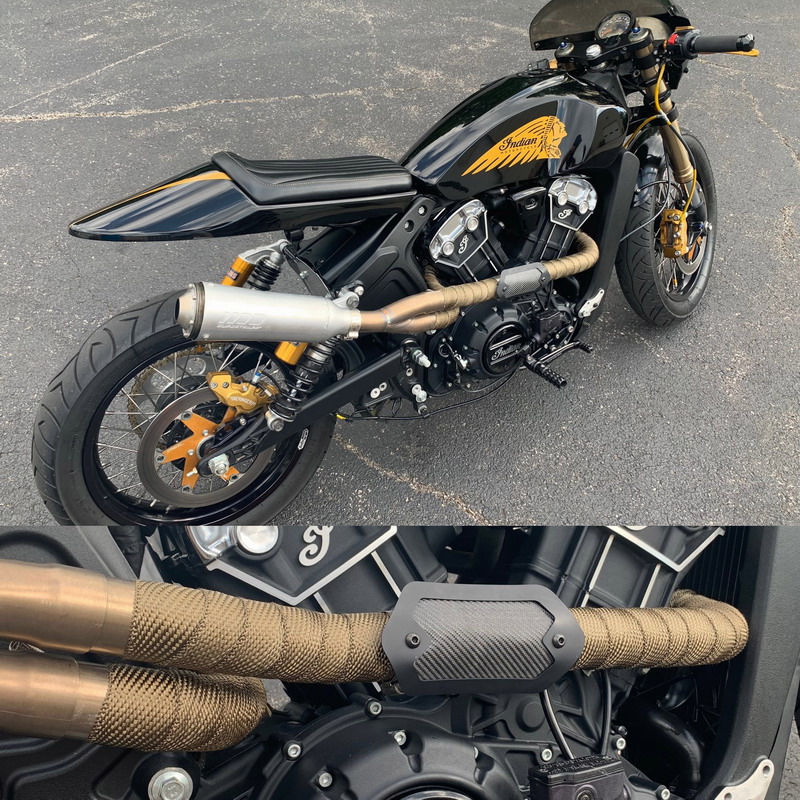

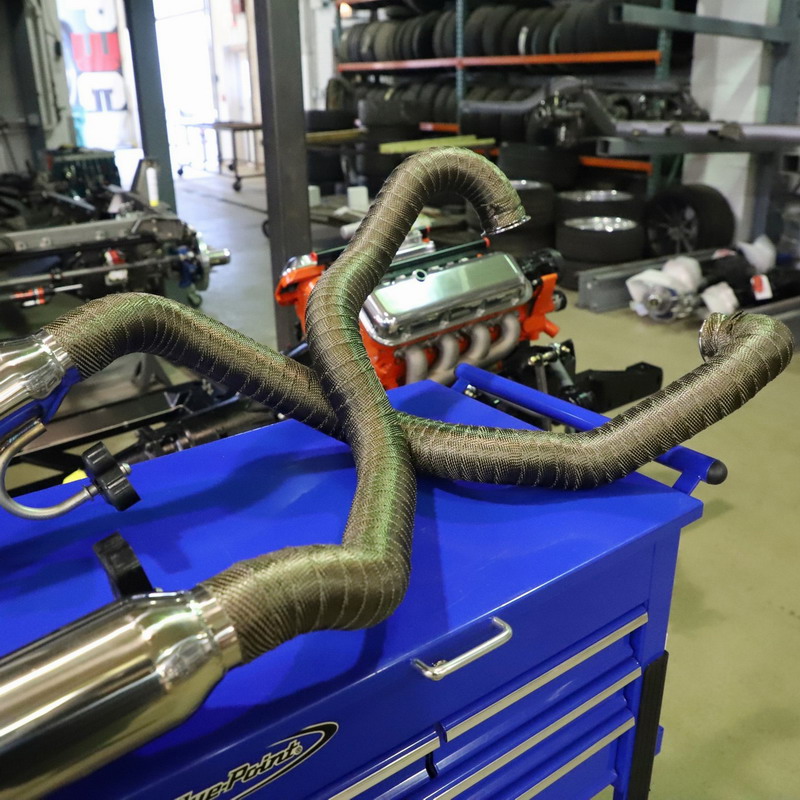

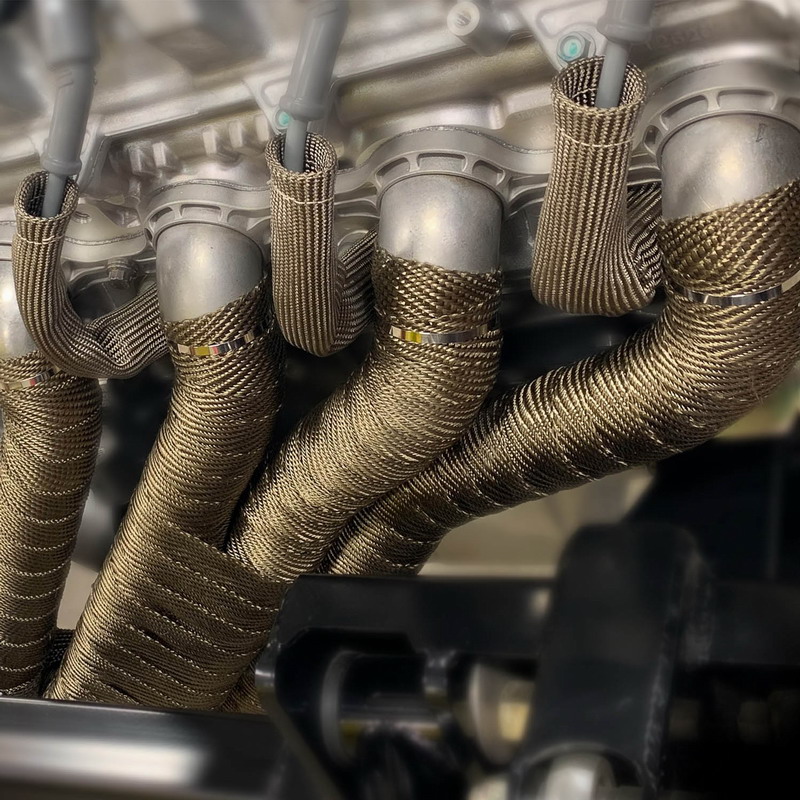

Application-Basalt-800 Application-Basalt-800-3 Application-Basalt-800-4
