BT1000-50
Mingchen

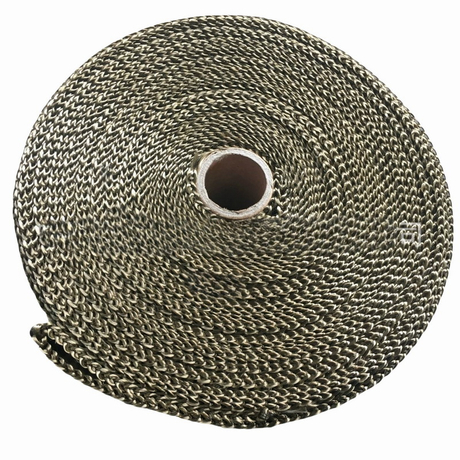

50mm 1mm thickness basalt fiber tape generally for motorbike exhaust pipe wrapping for it's perfect heat resistant.

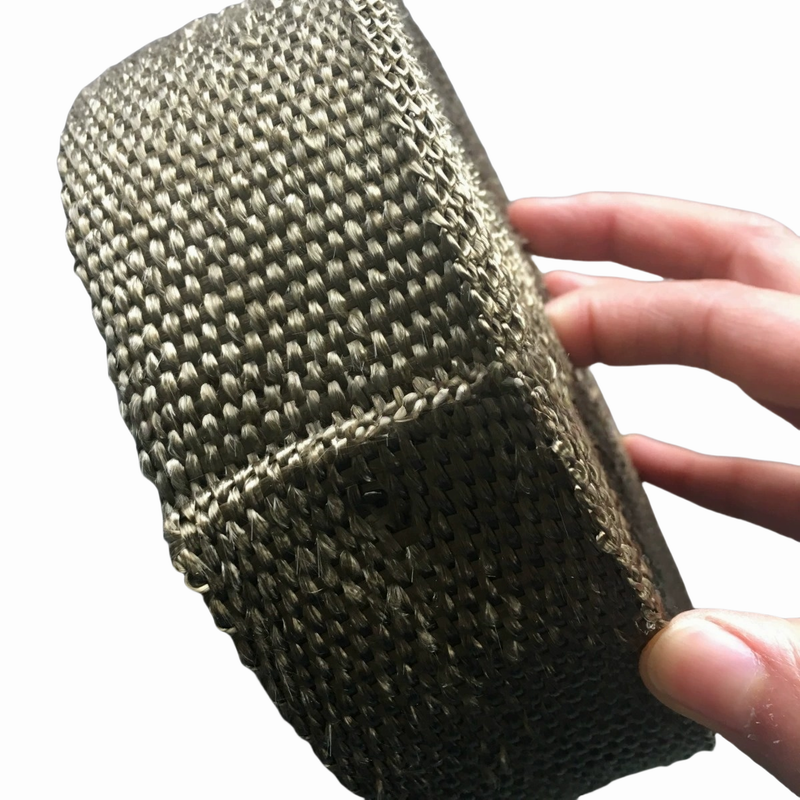

Basalt fiber tape woven is made from a dark and shiny fiber derived from volcanic rock. spun into fibers and assembled as yarns that are expertly woven into high temperature basalt tape offers resistance to operating temperatures up to 1500°F (815°C) and peak temperatures up to 2000°F (1095°C).
Model No.: | BT1000-50 | Weave Type | Plain woven |
Basalt grade | E-glass | Alkali | Free |
Density(g/m²) | 1000±20 | Thickness | 1.0mm±0.2 |
Width | 50mm or custom | Length/Roll | 5m/10m/15m or custom |
Bobbin diameter | 14mm or custom | Roll Diameter | 80-150mm or custom |
MOQ/order | 100 Rolls | Package | Carton |
Made in Alkali-Free High density E-Glass basalt fiber filament
Flame retardant and fireproof performance when the tape winds on pipelines
High temperature and corrosion, abrasion resistant for protection
Thermal insulation when tape winds on the pipes need heat keeping
Strong pulling resistance when the tape tightly winding or binding something
Heat resistant prevents employees from burning themselves when they bump into or touch the metal flue pipe.
Low thermal conductivity(W/(m.k)≤0.03
Max application temperature 900 C°, continuous operation temperature 700 C°
Basalt is 25% stronger than fiberglass wraps, easy to wrap, and vibration and chemical resistant
Roll width and Length can be customized
Bobbins can be 14mm or custom for choose
Basalt tapes are particularly well suited for applications such as heat shield, for example, exhaust systems; fire protection; reinforcement and vibration-damping material in composites; high-temperature resistant material for cable manufacturing, Insulation of tubes and exhaust pipes, electric insulation
Basalt fabrics are typically used in place of fiberglass or carbon fiber and are suited for applications requiring high mechanical strength. Basalt fabrics regularly outperform standard E-glass in demanding applications and are close in performance to specialty fibers like S-glass, carbon, and chemical resistant glass but at a fraction of the cost.
This fabric is tightly weaved and uniquely suited to be used as a high temperature barrier, heat containment in exhaust systems in the automotive, aerospace, heavy equipment, and transportation industries.
This fabric is also compatible with epoxy/polyurethane resins.
High-Temperature Insulation
Thermal Barrier for cable and pipe
Fire Protection
Gasket and Sealing
Safety Clothing & Gear manufacturing
1. If made in Alkali-Free E-glass fiberglass filament?
Yes, Alkali-Free
2. If Free Sample can be supported?
Yes, free sample can supply you for testing.
3. If tape can be customized?
Yes, we offer design-based customization, also sample-based customization services.
4. What’s the delivery time for bulk orders
15-20 working days after order confirmed
5. Warranty period
2 year after goods was on board
