Twill Woven E-glass Fiberglass Cloth

Twill is a type of textile weave with a pattern of parallel, diagonal ribs. It is one of three fundamental types of weave, along with plain weave and satin. It is made by passing the weft thread over one or more warp threads then under two or more warp threads and so on, with a "step", or offset, in a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlacing to the right or left, forming a pattern of distinct diagonal lines.

Quantity:
Availability:





Inquire Add to Basket

Model:
EW420-430

Twill Woven Fiberglass Cloth

Product Description

Basic information

Features

Application

FAQ

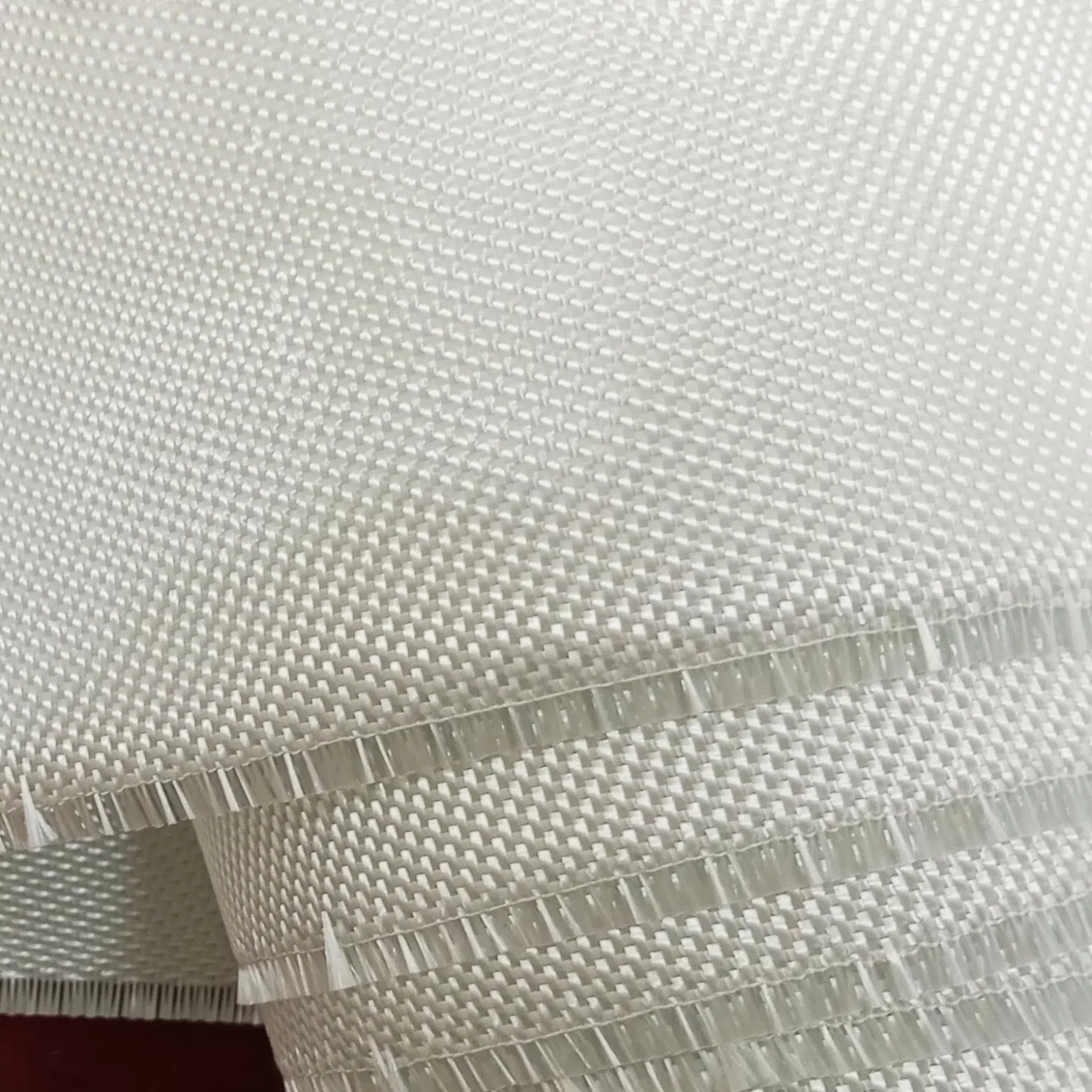

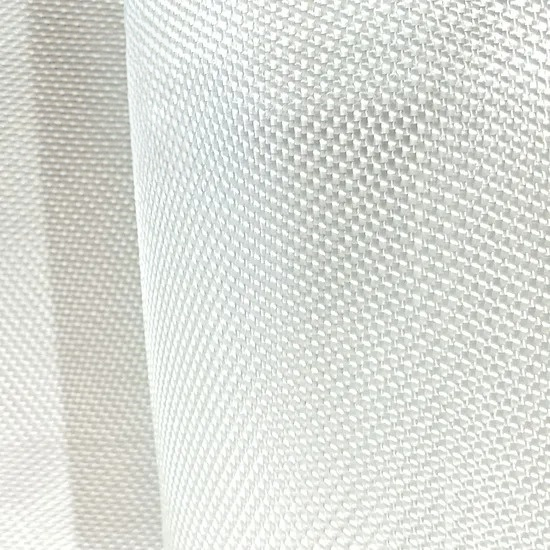

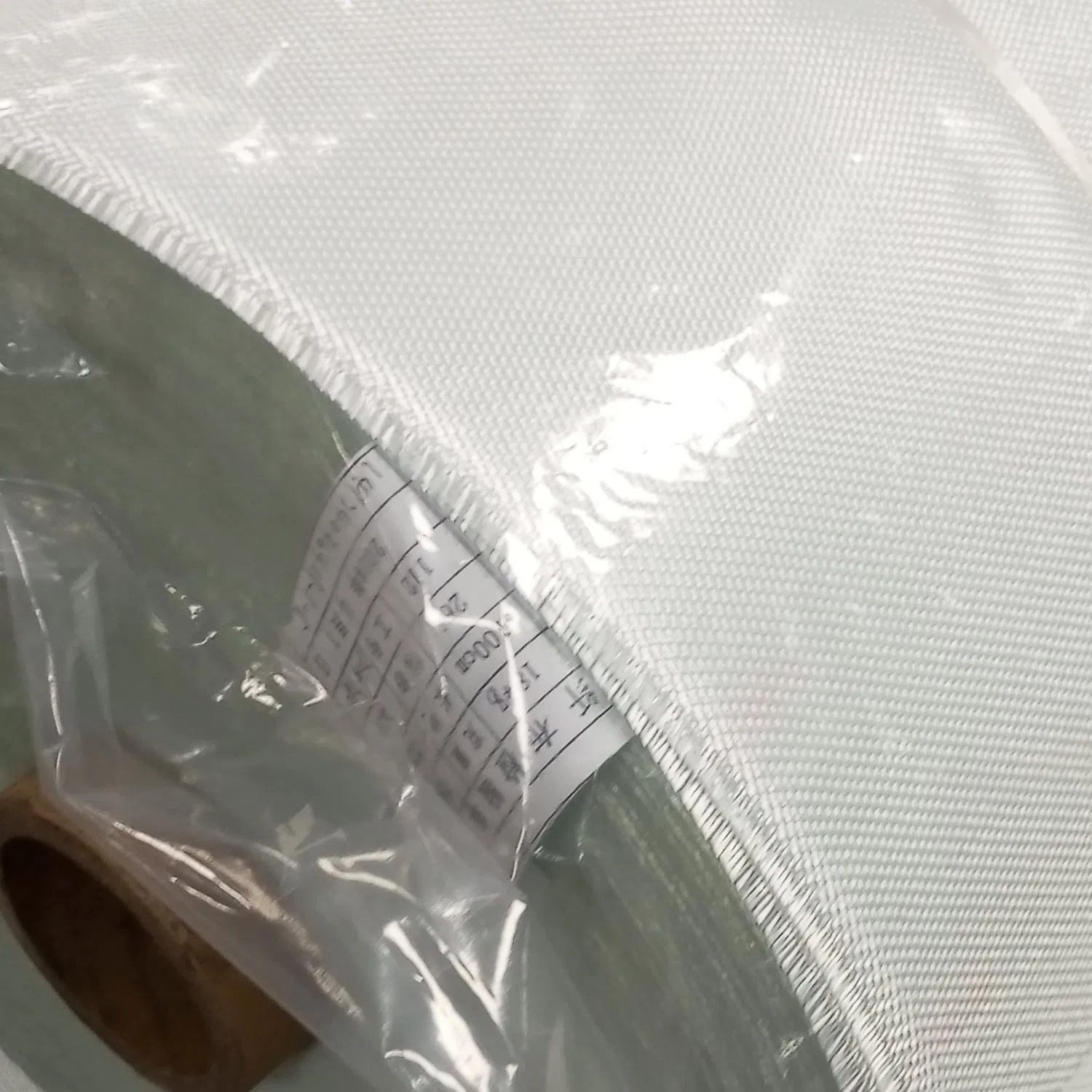

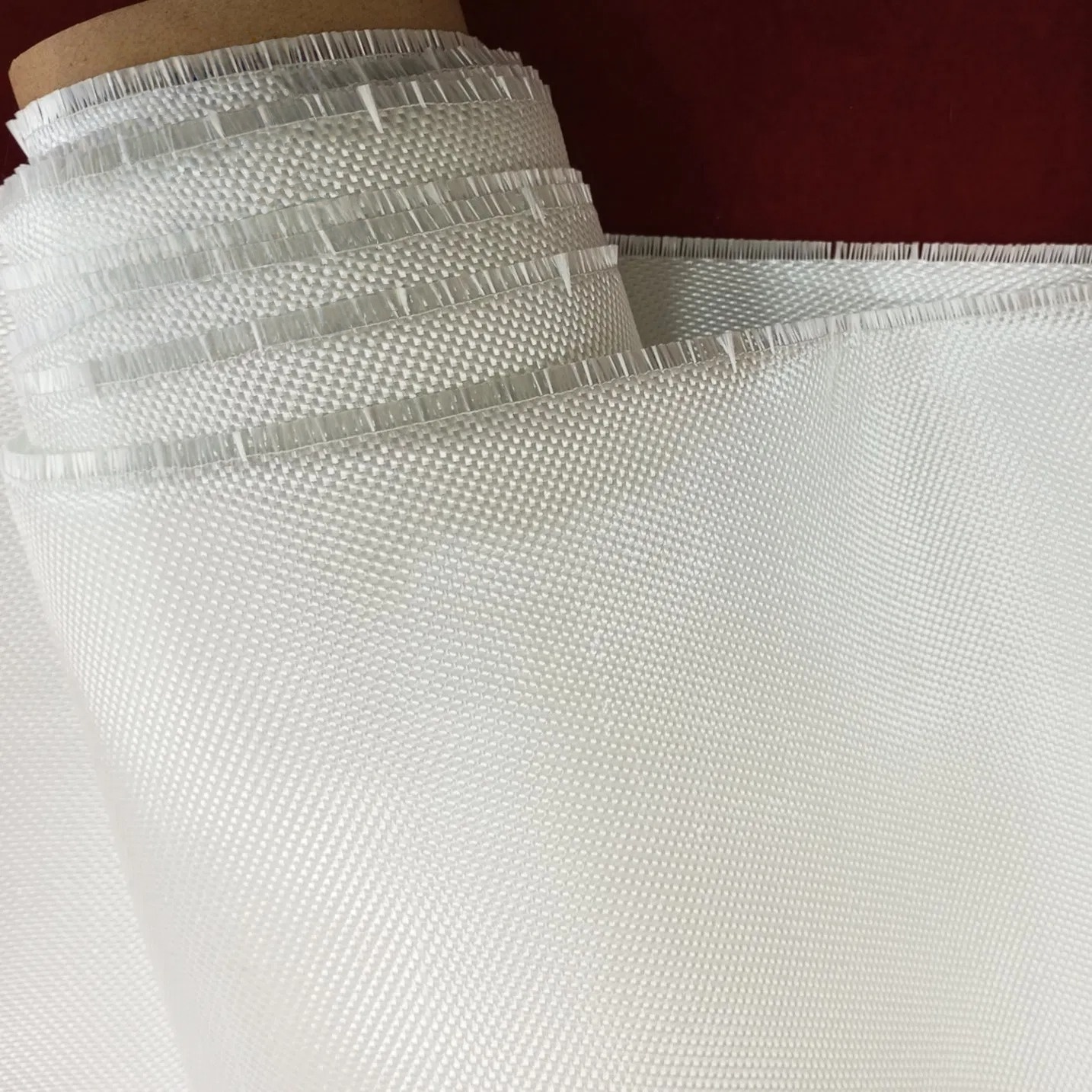

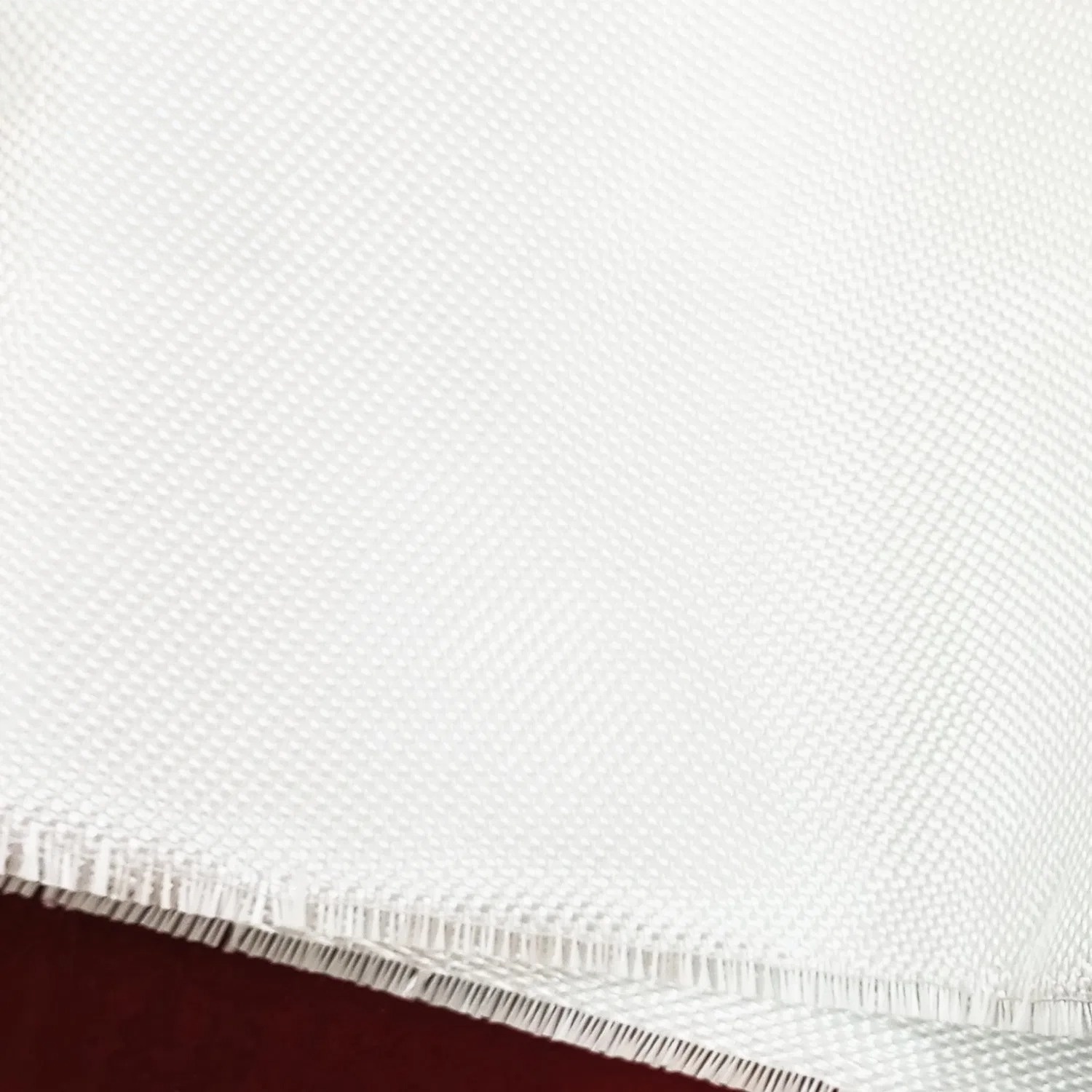

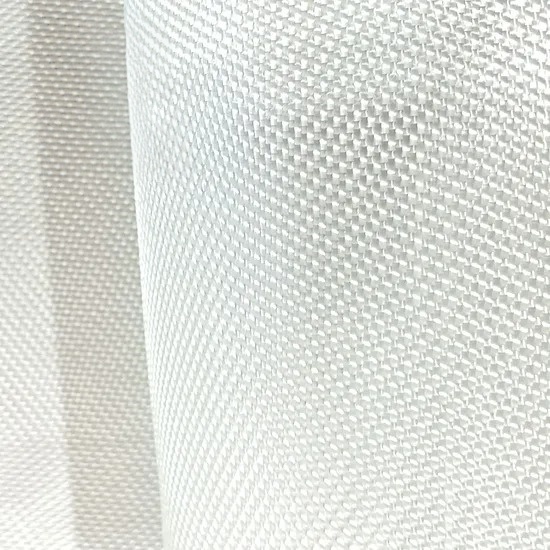

Twill is a type of textile weave with a pattern of parallel, diagonal ribs. It is one of three fundamental types of weave, along with plain weave and satin. It is made by passing the weft thread over one or more warp threads then under two or more warp threads and so on, the twill pattern fiberglass cloth generally coated with silicone or PU or PTFE oil to make car fire blanket or furance fire curtain, or architeture membrane and industry conveyor belt.

Model No.:	EW420-430	Weave Type	Twill
Fiberglass grade	E-glass	Alkali	Free
Density(g/m²)	420/430
Width	102-250cm	Length/Roll	100-400m
Bobbin diameter	58mm/76mm/83mm	Roll Diameter	350-600mm

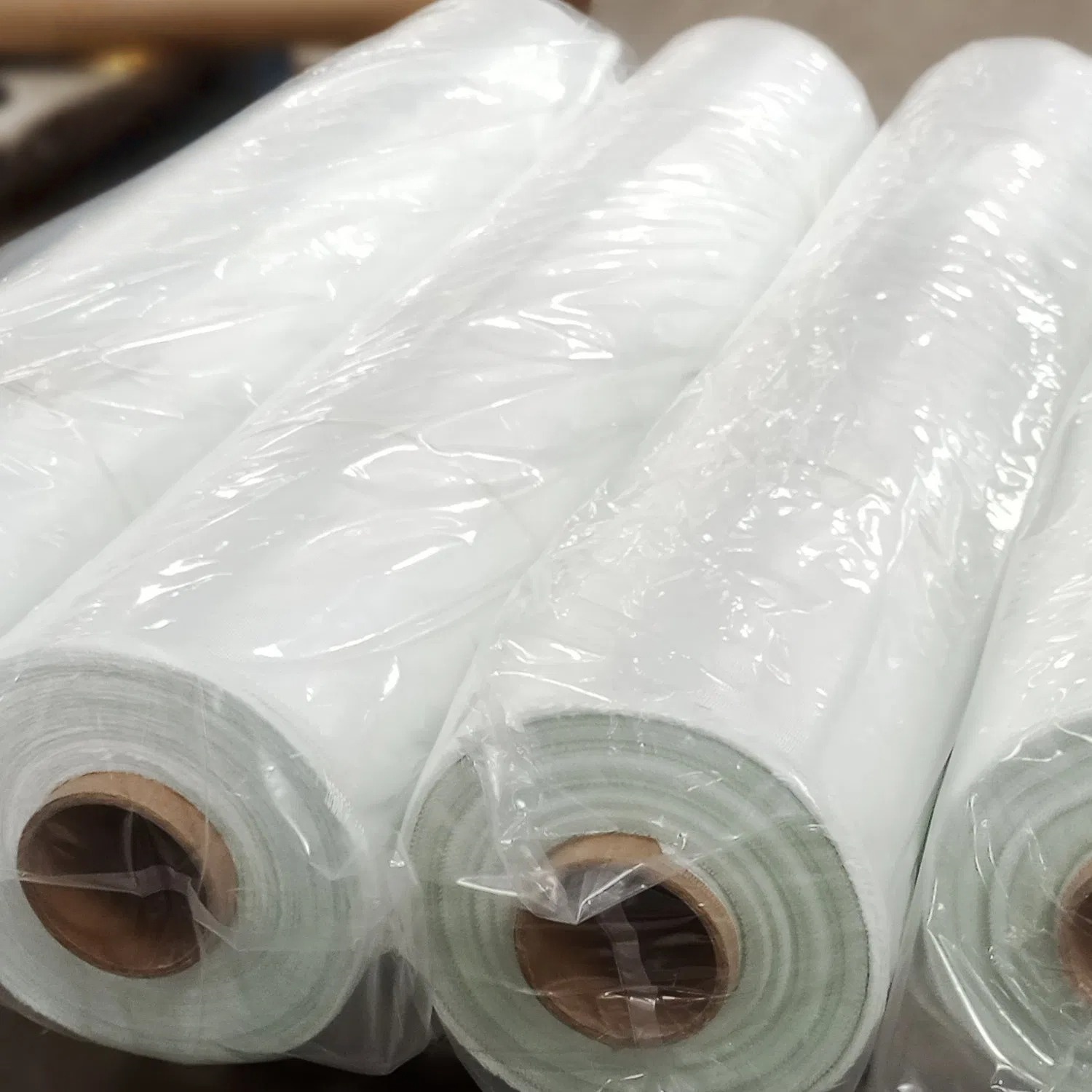

MOQ/order	10 Rolls	Package	Carton

High tensile strength and impact resistance

Good dimensional stability and deformation resistance

Good adhesion with resins and water resistance

Temperature stability and flame resistance.

Soft, flexible and well arranged

Simple and easy to use

Resistance to aging

Use for making fire blanket, welding mat, apply in shipyard base material, reinforce base layer paints in silicone/PU/PTFE coating, fire protection, thermal insulation, pipeline wrapping or aluminum foil lamination ,flame retardant and furnace curtains, heat insulation and thermal barrier.

1. If made in Alkali-Free E-glass fiberglass filament?

Yes, Alkali-Free

2. If Free Sample can be supported?

Yes, free sample can supply you for testing.

3. If tape can be customized?

Yes, we offer design-based customization, also sample-based customization services.

4. What’s the delivery time for bulk orders

15-20 working days after order confirmed

5. Warranty period

2 year after goods was on board
