ET85-480T

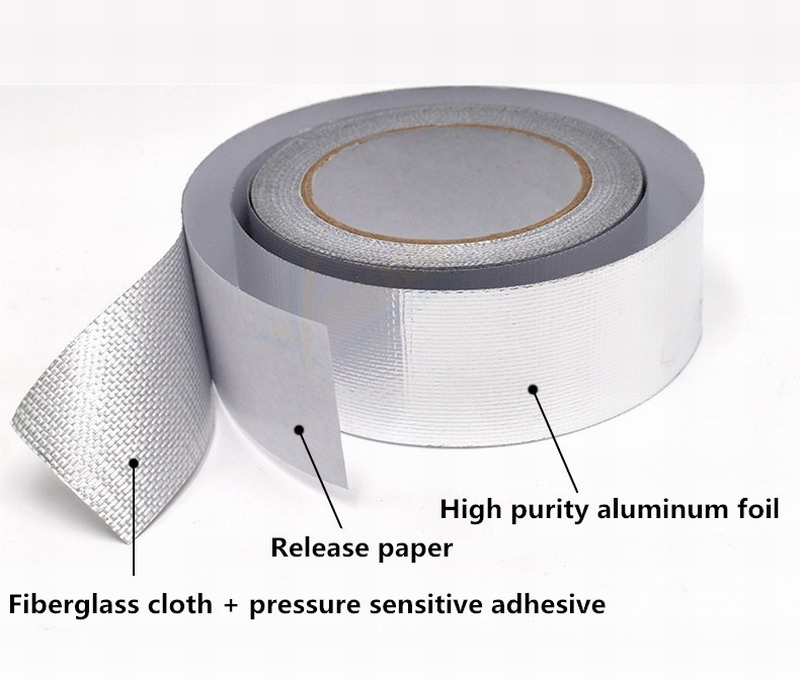

Aluminum foil tape laminated with fiberglass cloth is a high-performance adhesive tape combining the thermal and reflective properties of aluminum with the strength and durability of fiberglass. This makes it a versatile solution for various applications, particularly those involving high temperatures and demanding conditions.
The aluminum foil layer reflects up to 97% of radiant heat, making it an excellent thermal insulator and heat shield.
The combination of aluminum and fiberglass allows the tape to withstand high temperatures, typically ranging from -40°F to 500°F (-40°C to 260°C).
Model No.: | ET85-480T | Weave Type | Plain woven |
Fiberglass grade | E-glass | Alkali | Free |

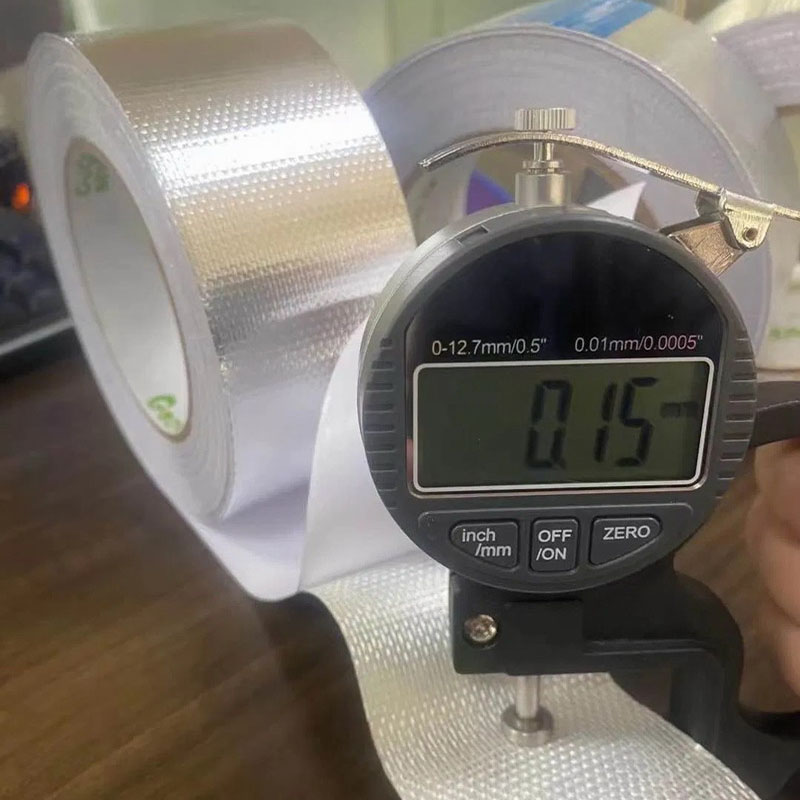

Density(g/m²) | 85-480 | Thickness(Foil) Thickness(Cloth) | 6um/9um/18um/25um 0.15mm-0.85mm |

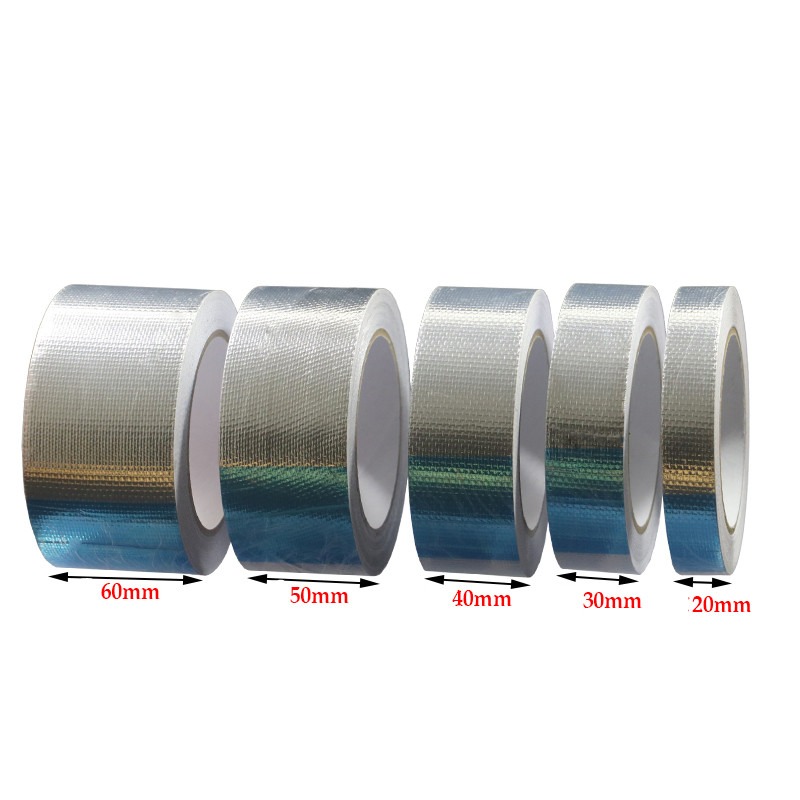

Width | 20mm-60mm or custom | Length/Roll | 20m or custom |
Bobbin diameter | 76mm | Roll Diameter | 20cm or custom |
MOQ/order | 100 Rolls | Package | Carton |
Exceptional heat and light reflection: The aluminum foil layer reflects up to 97% of radiant heat, making it an excellent thermal insulator and heat shield.
High temperature resistance: The combination of aluminum and fiberglass allows the tape to withstand high temperatures, typically ranging from -40°F to 500°F (-40°C to 260°C).
Superior strength and durability: The fiberglass reinforcement provides exceptional tensile strength, tear resistance, and puncture resistance, making the tape robust and resistant to mechanical stress and abrasion.
Effective moisture and vapor barrier: The aluminum foil layer acts as a barrier against moisture and vapor transmission, preventing issues like mold growth and material degradation.
Good chemical resistance: The tape is resistant to many chemicals, making it suitable for use in environments where exposure to corrosive substances is a concern.
Flexibility and conformability: Despite its strength, the tape remains flexible and can be easily applied to irregular or uneven surfaces, forming a tight seal.
Strong adhesion: The tape is coated with a high-performance adhesive, often acrylic-based, providing a strong and durable bond to various surfaces like metal, plastic, and insulation materials.
Flame retardant: Many versions are flame retardant, meeting fire safety standards like UL 723, making them suitable for applications where fire protection is required.
Thermal insulation and heat shielding: It is widely used to insulate pipes, ducts, and equipment in high-temperature environments, reducing heat loss or protecting sensitive components from radiant heat.

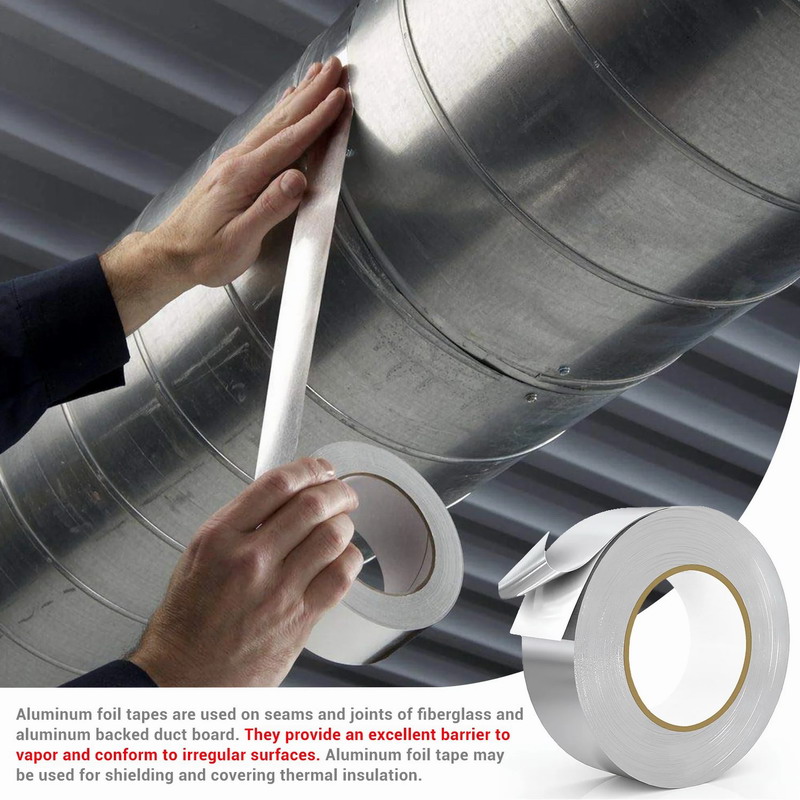

Duct sealing in HVAC systems: It effectively seals joints and seams in air ducts, preventing air leakage, improving energy efficiency, and ensuring consistent temperatures.
Electrical insulation and shielding: It can be used to wrap electrical cables, provide insulation around components, and shield sensitive electronics from electromagnetic interference (EMI) and radiofrequency interference (RFI).
Repair and reinforcement: It can be used to patch holes and cracks in various surfaces, including roofs, gutters, and insulation materials, offering a quick and reliable fix.
Industrial applications: It finds use in diverse industrial settings for heat management, sealing, and protection in areas exposed to high temperatures, moisture, and chemicals.
Automotive and aerospace applications: It's used for heat shielding and insulation in engine compartments, near exhaust systems, and for protecting wiring and other components in demanding environments like aerospace and aviation.
1. If made in Alkali-Free E-glass fiberglass filament?
Yes, Alkali-Free
2. If Free Sample can be supported?
Yes, free sample can supply you for testing.
3. If tape can be customized?
Yes, we offer design-based customization, also sample-based customization services.
4. What’s the delivery time for bulk orders
15-20 working days after order confirmed
5. Warranty period
2 year after goods was on board
