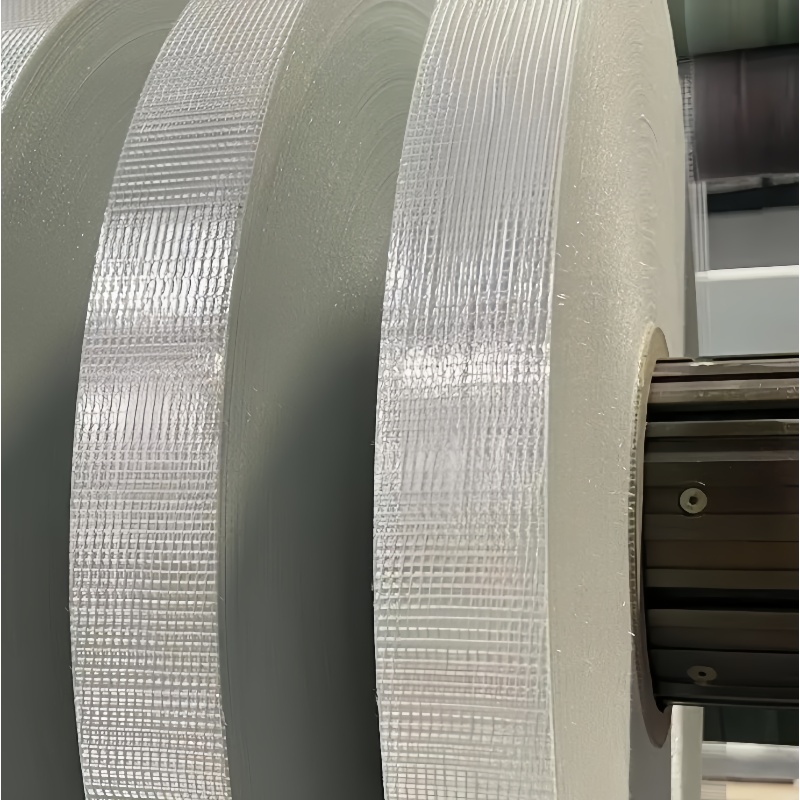

PET Laminated Fiberglass Tape for Power Cable Winding

PET Laminated Fiberglass Mesh Roll Cloth Then Split Tape for Power Cable Winding or Cable Wraping to replace the fibergalss tape.

The tape can be coated in water resistant adhesive or oil resistant adhesive, also can lamintated with self-adhesive tape with release lining.

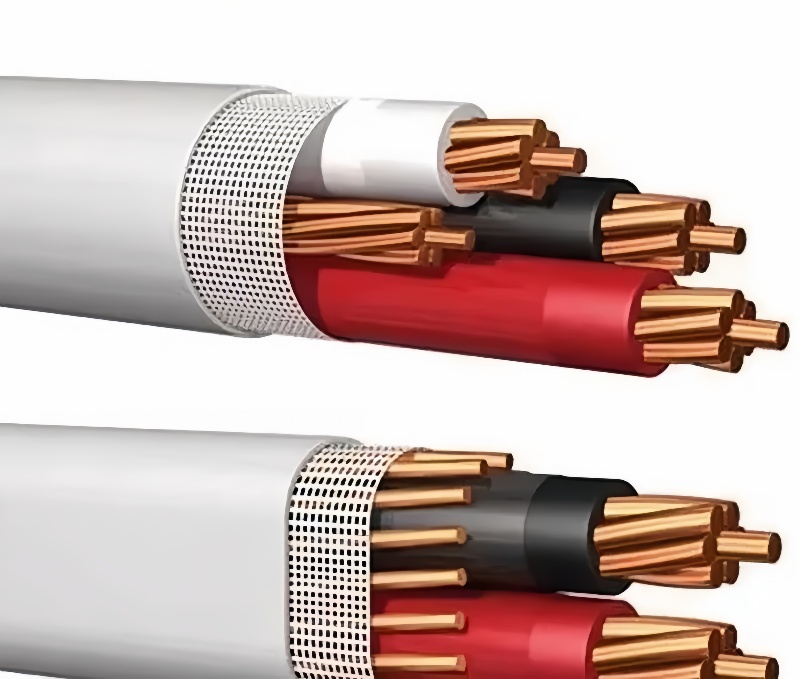

This tape is primarily used as a replacement for glass braid on SEU and SER service entrance cable. It can also be used as bedding or binding tape.

Quantity:
Availability:





Inquire Add to Basket

Model:
PET115-40-60

PET Laminated Fiberglass Tape

Product Description

Basic information

Features

Application

FAQ

PET (Polyethylene Terephthalate) laminated with fiberglass offers a combination of mechanical strength, dimensional stability, and resistance to environmental factors, opening up possibilities for use in a variety of industries where these properties are crucial. However, considerations regarding weather resistance, production cost, and recycling limitations should be taken into account during selection and design.

A pet film laminated with fiberglass mesh tape, but without an adhesive backing, is a versatile material used for reinforcement and insulation in various applications. This type of tape typically requires an additional adhesive or resin to bond it to surfaces.

This tape is primarily used as a replacement for glass braid on SEU and SER service entrance cable. It can also be used as bedding or binding tape.

Model No.:	PET115-40-60	Weave Type	Plain woven
Fiberglass grade	E-glass	Alkali	Free
Density(g/m²)	115	Thickness	0.18mm
Width	40mm/50mm/60mm or custom	Length/Roll	50m or custom
Bobbin diameter	76mm	Roll Diameter	30cm or custom
MOQ/order	100 Rolls	Package	Carton

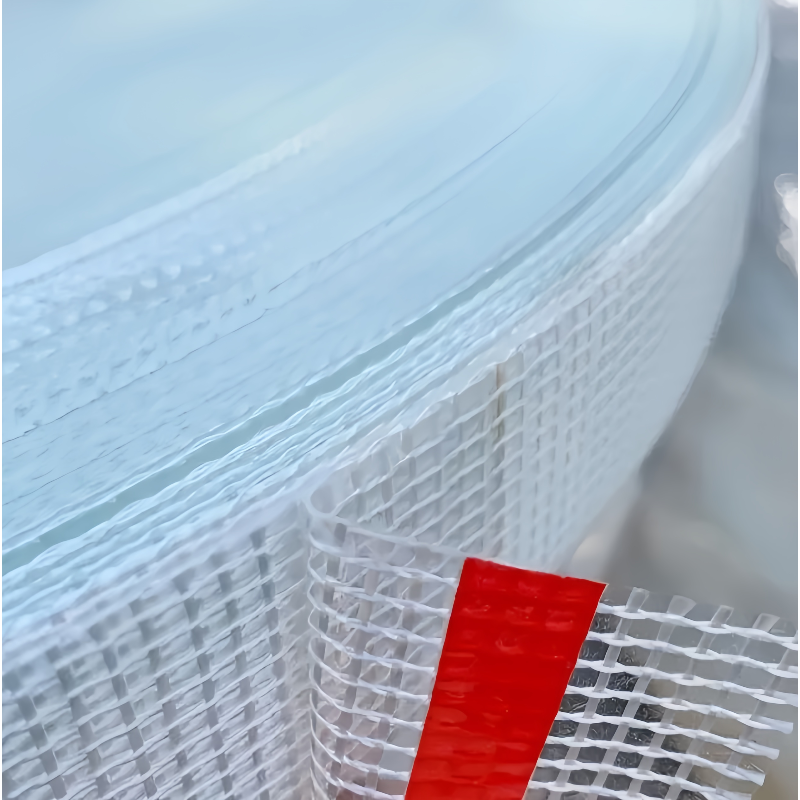

Composition: The tape consists of a polyester (PET) film layer laminated to a fiberglass mesh. The fiberglass mesh provides strength and reinforcement, while the PET film offers durability and flexibility.

Non-adhesive: The defining feature is the absence of an adhesive layer. This allows for flexibility in choosing the bonding agent best suited for the specific application.

Reinforcement: The fiberglass mesh provides excellent tensile strength and tear resistance, making it suitable for reinforcing seams, edges, or areas prone to stress.

Insulation: The tape can offer good insulation properties, making it useful in electrical applications or where thermal insulation is needed.

Resin Compatibility: The non-adhesive nature allows for compatibility with various resins, including epoxy, polyester, and vinyl ester, providing a strong and durable bond.

Heat Resistance: Fiberglass mesh is inherently heat resistant, making this type of tape suitable for high-temperature applications.

Edge Finish: Fiberglass mesh tape often has a selvage edge to prevent fraying and unraveling, ensuring a clean and stable application.

Electrical Industry: Used as a replacement for glass braid on service entrance cables (SEU, SER) and for banding or binding cables.

Molding and Repairs: The tape can be wrapped and bonded to molds or pipes for reinforcement and repair, often using epoxy, polyester, or vinyl ester resin.

Other Industries: Can be used in a variety of applications requiring reinforcement, insulation, and high tensile strength, such as in the construction of refrigerators, computers, and other electronics.

Building and Construction: May be used for waterproofing, reinforcing joints, and other applications where a non-adhesive, strong, and flexible material is needed.
