Industrial heat insulation failures cause severe energy loss across manufacturing plants. They create significant safety hazards for personnel operating nearby. They also accelerate equipment degradation over time. High ambient temperatures degrade adjacent electronics and weaken structural supports rapidly. Workers face severe burn risks near poorly insulated exhaust lines and steam valves.
Specifying the right material goes far beyond relying on generic fireproof marketing claims. Facility managers and engineers must carefully balance underlying thermal physics, harsh environmental exposure, and intense mechanical stress. Using the wrong textile in a high-heat zone invites catastrophic system failure. It can compromise entire production lines in minutes. Generic fireproof materials often fail under these relentless real-world conditions. Finding a reliable solution requires looking closely at material science.
This guide provides a complete, evidence-based framework for selecting the ideal insulation fabrics. We explore essential base chemistry and evaluate weave structural integrity in depth. We analyze how functional coatings change performance thresholds. You will discover how specific weave designs dictate installation success. You will learn exactly how to match the right material to your specific industrial application.
Insulation Mechanism: High-performance thermal fabrics rely on >90% porosity to trap gases, keeping thermal conductivity as low as 0.035 W/m·K.
Base Material Baseline: E-Glass fiberglass cloth remains the industry standard for continuous exposure up to 550°C (1000°F), offering optimal cost-to-performance.
Coating vs. Temperature: While base glass resists high heat, protective coatings (Silicone, PTFE, Vermiculite) dictate the fabric's weather, chemical, and abrasion resistance, often lowering the overall operational temperature limit.
Application Matching: Sourcing for removable jackets, a welding blanket cloth, or expansion joints requires distinct combinations of weave drapability and coating combinations.
Insulation effectiveness primarily comes from the physical structure of the material. High-performance fabrics achieve exceptional thermal resistance through extreme porosity. These textiles typically consist of more than 90% void space. The solid silica fibers do not block the heat directly. Instead, they serve as a physical matrix. This microscopic cage traps ambient air or other gases. Still air acts as a terrible conductor of heat. Therefore, this trapped gas becomes the actual thermal barrier protecting your equipment.
Engineers evaluate insulation performance using precise thermal conductivity metrics. We measure this resistance in Watts per meter-Kelvin (W/m·K). Quality industrial fiberglass delivers excellent baseline metrics. It typically maintains a low thermal conductivity ranging from 0.035 to 0.04 W/m·K at room temperature. This low value indicates minimal heat transfer through the material mass. It guarantees excellent energy retention inside insulated piping systems. You must verify these metrics through standardized testing data before material procurement.
Standard glass fibers possess inherent physical limitations at extreme temperatures. Ambient temperatures exceeding 700°C trigger a significant shift in thermal dynamics. Conduction and convection no longer drive the primary heat transfer. Radiant heat transfer dominates the environment completely. This shift causes a logarithmic spike in overall thermal conductivity. The radiant infrared energy easily passes through the porous silica matrix. The trapped air cannot block this intense radiation. Standard fiberglass loses its insulating power rapidly during this phase. Engineers must upgrade to specialized high-temperature materials or reflective laminates when facing these conditions.
Industrial insulation relies heavily on one proven baseline material. E-Glass fiberglass cloth stands as the most commercially viable option worldwide. Manufacturers produce this alkali-free glass to ensure superior thermal stability. Alkali metals generally lower the melting point of glass. Removing them creates a highly resilient textile. It easily resists continuous operating temperatures up to 550°C. It accomplishes this without losing its essential structural integrity. It offers an unbeatable balance of strength, availability, and thermal defense.

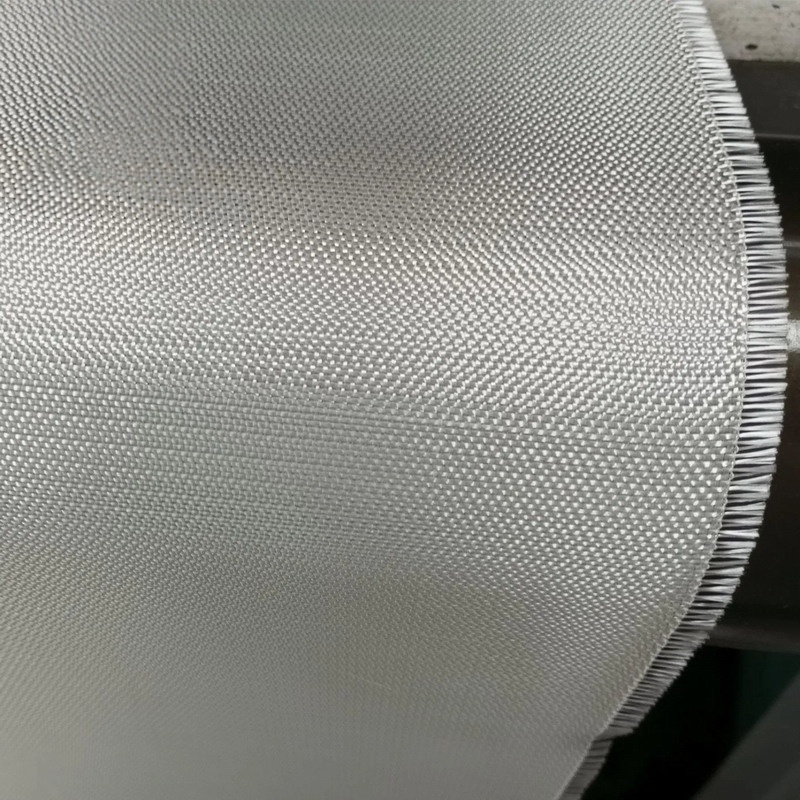

Procurement teams frequently specify one particular material grade. They call out E-Glass 3732 fiberglass cloth as the ultimate benchmark standard in industrial insulation. This specific fabric utilizes a highly optimized construction profile. It features a specific weight of roughly 430 grams per square meter. The weave density provides exceptional mechanical toughness. It delivers balanced tensile strength across both warp and weft directions. These physical traits make it the perfect raw substrate. It readily accepts secondary coating processes like silicone or PTFE dipping.
Environments exceeding standard limits demand advanced chemical compositions. We use a clear evaluation ladder to scale thermal protection upward.
Material Grade | Temperature Limit | Key Characteristics & Best Uses |
|---|---|---|
Standard E-Glass | Up to 550°C | Alkali-free baseline. Ideal for standard piping and valve jackets. |
Stainless Steel Wire Inserted E-Glass | Up to 1000°C | Boosts structural stability. Prevents complete fabric failure during direct flame impingement. |
High-Silica Fabric (>96% SiO2) | 1000°C – 1100°C | Virtually no thermal shrinkage. Essential for petrochemical plants and heavy smelting operations. |
Alumina Fibers | Up to 1260°C | Maximum extreme environment protection. Used extensively in aerospace shielding and automotive DPF systems. |
Chemical composition dictates how a material handles intense heat. However, the physical weave dictates how the material handles the actual installation. You cannot ignore mechanical flexibility during the design phase. Choosing the wrong weave pattern leads directly to poor surface contact. Poor contact creates dangerous air gaps between the pipe and the insulation.
Air gaps allow unwanted convective heat loops to form.
Stiff fabrics struggle to wrap tightly around complex flanges.
Loose weaves may stretch and thin out during tensioning.

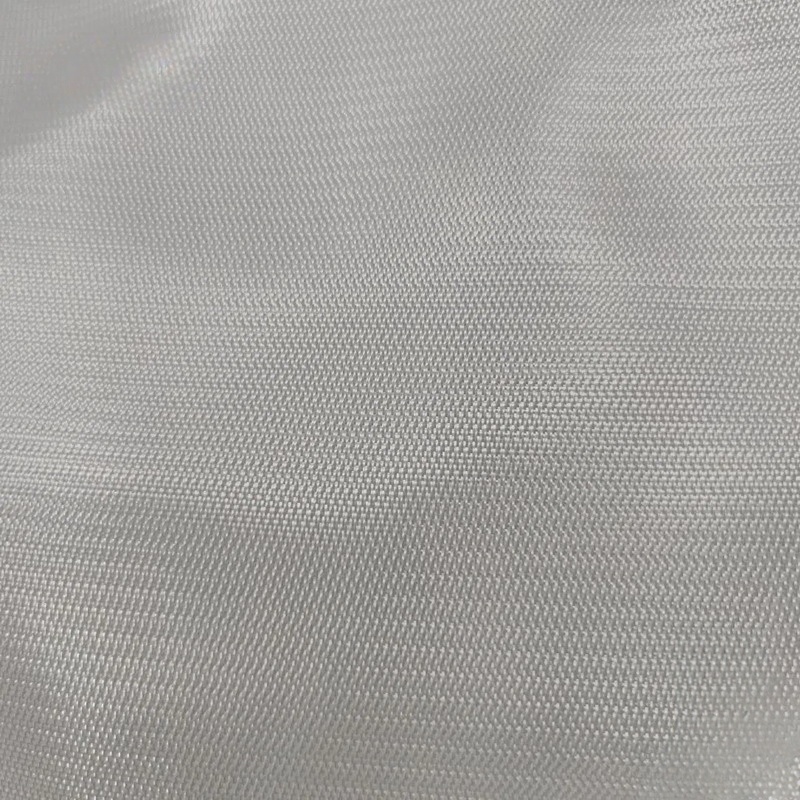

A plain weave uses a simple over-and-under intersecting pattern. This classic configuration offers the highest dimensional stability available. It provides excellent grid strength and resists heavy distortion. The fabric holds its precise shape during aggressive cutting and sewing. We recommend plain weave for flat surface applications. It works perfectly for straight piping sections. It also serves well in simple, stationary insulation blankets. However, it lacks the necessary flexibility for complex curved shapes.
Complex applications require specialized textile engineering. Twill and satin weaves solve major installation challenges. These patterns float yarn over multiple intersecting threads. This specialized construction prioritizes "drapability" and conformability. The fabric bends and folds fluidly over irregular geometries. We consider these weaves essential for fabricating complex removable insulation jackets. Technicians rely on them to cover awkward valves and bulky turbine housings. Tight wrapping remains critical to stop heat leaks. Twill weaves ensure the fabric hugs every contour perfectly.
Best Practice: Always test drape stiffness before finalizing a specification for removable valve covers. Using a rigid plain weave on a multi-angle valve jacket will cause the seams to tear prematurely due to localized stress points.
Uncoated fiberglass struggles in raw industrial environments. The bare yarns remain highly susceptible to moisture ingress. They quickly absorb leaking hydraulic fluids and lubricating oils. The fabric frays severely during fabrication and scissor cutting. Airborne glass filaments also cause significant skin irritation for installation crews. Protective polymer coatings completely solve these mechanical issues. However, applying a coating significantly alters the overall temperature thresholds. You must specify a high temperature fiberglass fabric that perfectly balances heat resistance and environmental defense.
Insulation system exterior layers face harsh weather and chemical spills. We refer to this outer layer as the "cold face."

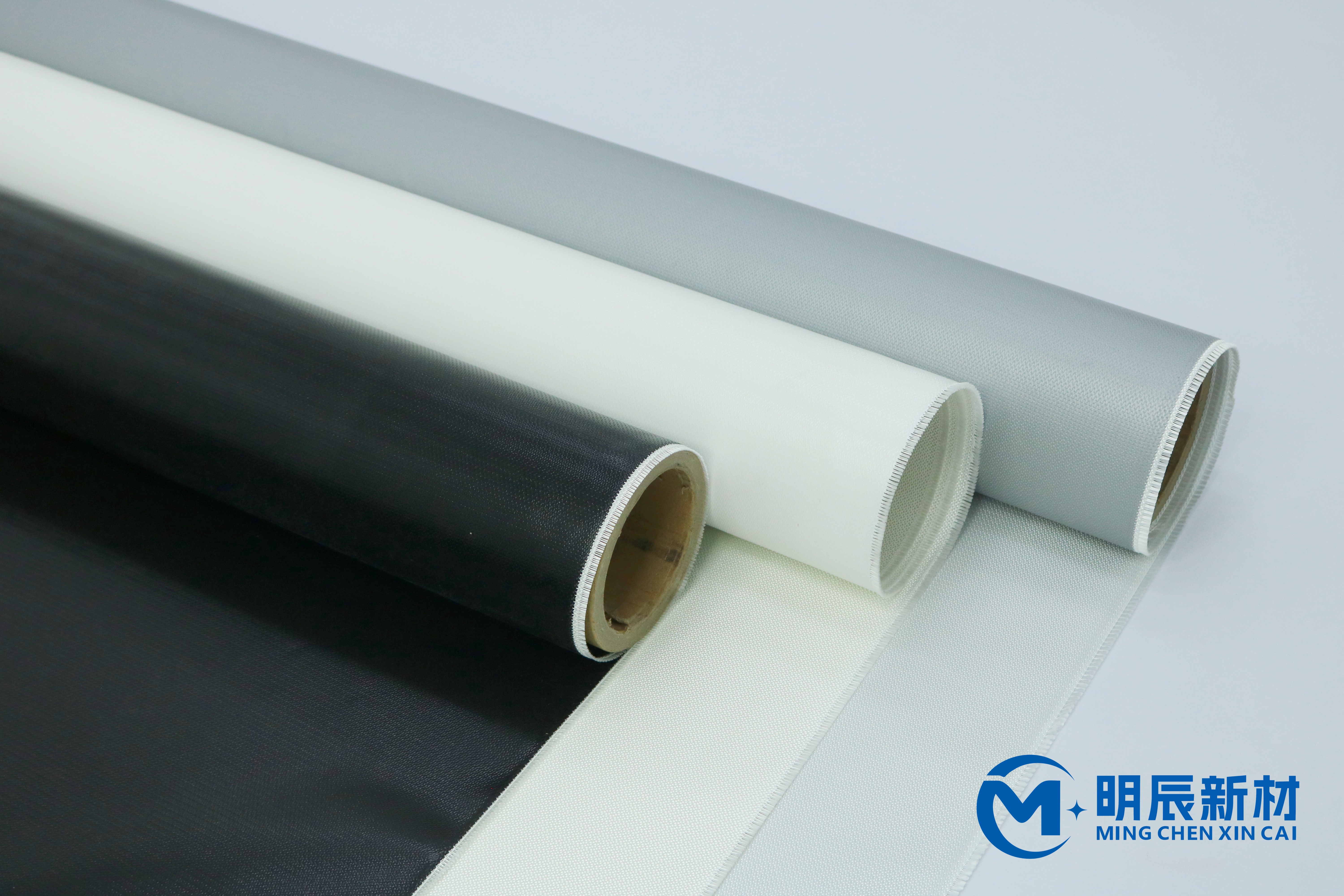

Silicone Coating (Max 250°C / 500°F): Silicone delivers superior waterproofing capabilities. It provides excellent chemical resistance against everyday industrial solvents. The rubberized surface ensures total air-tightness. It completely prevents yarn fraying when cut and stitched. It remains highly flexible even in freezing outdoor conditions.
PTFE Coating (Max 300°C / 572°F): PTFE offers the ultimate chemical defense mechanism. We specify PTFE for extreme resistance to aggressive acids and harsh industrial solvents. It provides a non-stick surface. Contaminants wipe off easily. It outperforms silicone in purely corrosive atmospheres.
The interior layer touches the heat source directly. We call this the "hot face."
Vermiculite & Calcium Silicate (Max 650°C - 750°C): These mineral-based treatments act as specialized heat-dispersing shields. They dramatically enhance the base E-glass resistance to direct flame exposure. They force intense heat to travel laterally across the fabric surface. They also repel molten metal splash brilliantly.
Aluminum Foil Lamination: Foil serves a highly specific physical purpose. It creates an exceptional radiant heat shield. High-quality aluminum laminates reflect up to 95% of incoming thermal radiation. We use them extensively near high-intensity infrared heat sources.
Coating Performance Comparison Chart | |||
Coating Type | Max Continuous Temp | Primary Defense Mechanism | Key Weakness |
|---|---|---|---|
Silicone Rubber | 250°C | Waterproofing, oil blocking, high flexibility | Low maximum temperature threshold |
PTFE (Teflon) | 300°C | Extreme chemical and acid resistance | Stiffer drape, higher material cost |
Vermiculite | 750°C | Flame dispersion, metal splash resistance | Poor water and oil resistance |
Aluminum Foil | Varies (Radiant) | Reflects 95% of radiant infrared heat | Delaminates under severe mechanical flexing |
Selecting materials requires mapping physical properties to specific field demands. We organize these solutions into three distinct industrial scenarios. This mapping guarantees maximum performance and safety.
Removable Insulation Jackets: Complex jackets require a sophisticated dual-layer strategy. Engineers must treat the inner and outer surfaces differently. You need an inner "hot side" layer built from vermiculite-treated glass or pure high-silica fabric. This handles the raw pipe temperature. You then pair it with an outer "cold side" layer of silicone-coated fabric. The exterior silicone blocks rain, snow, and corrosive hydraulic oils.
Welding Blanket Cloth & Hot Work Safety: Welding environments require massive resistance to heavy slag. Hot spatter quickly burns through inappropriate materials. You must specify a welding blanket cloth designed for this exact threat. Uncoated high-silica fabrics provide maximum slag defense. Alternatively, heavy-duty polyurethane or silicone-coated E-glass provides optimal draping properties. The thick polymer coating prevents hot metal from gripping the fibers, offering excellent anti-burn-through properties.
Non-Metallic Expansion Joints & HVAC: Ducts and joints experience relentless physical movement. You must prioritize dynamic flexibility alongside thermal defense. These joints require perfect gas-sealing properties and high vibration resistance. Stiff fabrics fail quickly here. Silicone or PTFE composites represent the industry standard. They endure continuous mechanical fatigue easily. They maintain their vital thermal seals over millions of flexing cycles.
Many procurement teams fundamentally misunderstand fiberglass flammability. Pure E-glass simply does not burn. It will never produce toxic smoke during an emergency. The inorganic silica base melts only when temperatures exceed 1000°C. Claiming the base fiberglass fabric catches fire represents a major technical misunderstanding. The mineral matrix acts as an absolute fire barrier.
If the glass does not burn, why do insulation fires happen? We must clarify the actual root causes. Insulation fires are almost always caused by inappropriate external additions. Contractors sometimes use dangerous kraft paper backings. Some use cheap plastic films for vapor barriers. Non-spec adhesive binders also ignite easily. Furthermore, highly porous uncoated fabric acts like a sponge. It accumulates volatile industrial oils and flammable dust over time. A stray spark ignites this trapped oil, not the fiberglass itself.
Common Mistake: Evaluating the temperature rating of the base glass while ignoring the coating. A fiberglass cloth coated with PVC might withstand 550°C at the core, but the exterior PVC will melt and burn at just 150°C.
You must demand rigorous documentation before final procurement. Advise your buyers to request detailed material data sheets immediately. Look for specific ISO or ASTM testing records. Crucially, you need testing data for both the base fabric and the applied coating. You must ensure the coating's specific failure point does not accidentally compromise your facility's safety protocol. Transparency prevents catastrophic field failures.
Specifying thermal insulation fabrics demands precise engineering logic. Your base material choice dictates the maximum thermal survival limit. Your selected weave pattern dictates the fabrication fit and overall conformability. Finally, your applied coatings dictate the environmental lifespan and chemical resistance.
We highly recommend conducting a localized thermal audit inside your facility. You should measure continuous operating temperatures versus unexpected peak spike temperatures separately. Reach out to reputable manufacturers to request physical sample swatches. Test these swatches for resin and chemical compatibility. Verify their stitchability on your shop floor before committing to a massive bulk procurement.
A: No, the inorganic silica base is non-combustible. The base material will not ignite or fuel a fire. However, applied surface coatings like standard PU, PVC, or acrylics have specific temperature limits. These exterior chemical coatings may degrade, smoke, or combust if overexposed to extreme heat.
A: It offers an optimal balance of thickness, heavy weight, and tight weave construction. This precise combination makes it highly versatile for thermal wrapping tasks. Furthermore, its structural stability makes it an ideal, reliable substrate for applying liquid silicone or PTFE coatings.
A: No, standard E-glass serves as an excellent electrical insulator. It completely prevents electrical current flow. This non-conductive property makes it perfectly safe for use around high-voltage equipment, sensitive wiring harnesses, and powerful industrial induction furnaces.
