For industrial applications requiring robust weatherproofing on one face and high-temperature insulation on the other, finding the right material often challenges engineers. Many procurement teams over-spec their thermal barriers. They frequently opt for expensive double-sided silicone or rigid PTFE alternatives. This happens even when environmental exposure only demands unidirectional protection. Such over-engineering drains budgets without adding functional value. Fortunately, Single Side Silicone Coated Fiberglass Fabric offers an optimal balance. It delivers excellent mechanical strength, reliable thermal shielding, and high fabrication efficiency. This article provides a comprehensive, evidence-based evaluation framework. We aim to help buyers determine if a single-sided 287°C-rated fabric aligns perfectly with their needs. You will learn how to match your specific operational criteria to exact material capabilities. We also explore targeted industrial use cases and strategic procurement steps. This knowledge will prevent unnecessary spend and improve your manufacturing outcomes.
Temperature Reality: The fiberglass base withstands up to 550°C (1000°F), while the silicone coating provides continuous environmental protection up to 287°C (550°F).
Fabrication Advantage: The uncoated E-glass side remains dry and non-tacky, preventing friction on sewing tables and accelerating production for thermal insulation cover manufacturers.
Chemical Nuance: Highly resistant to UV, ozone, and oil, but strict exclusion is required for environments exposed to aromatic solvents (e.g., toluene, xylene).
Electrical Utility: Beyond thermal shielding, the material delivers a reliable breakdown voltage of 20-50KV/MM for industrial electrical applications.

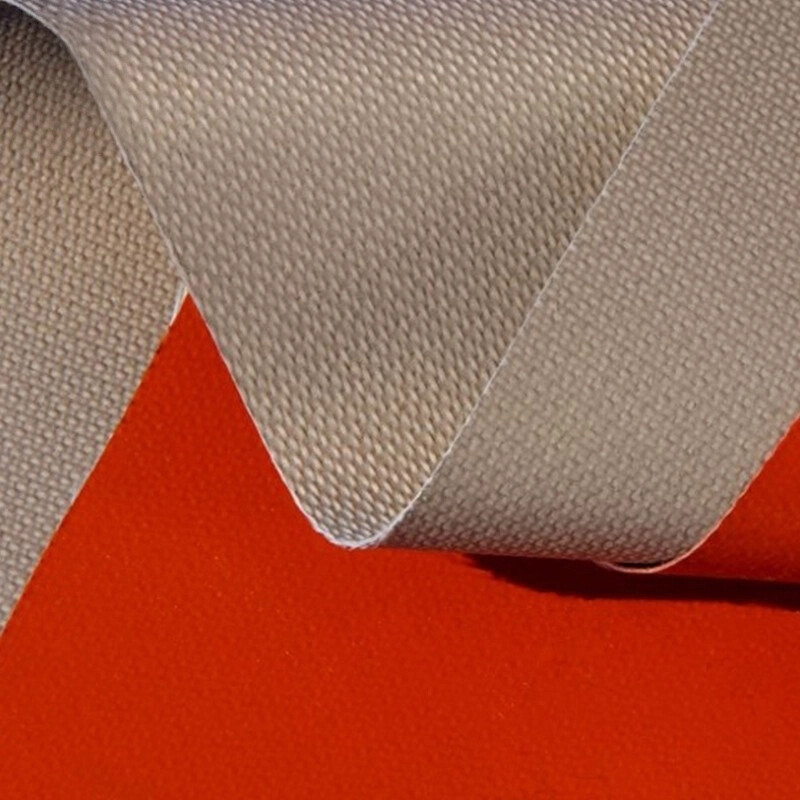

We must thoroughly understand the dual-layer nature of this composite material. The base provides the necessary structural strength. Meanwhile, the specialized coating offers targeted environmental resistance. This distinct division of labor creates a highly efficient industrial barrier.
Base Material (E-Glass): E-glass forms the reliable structural foundation. Manufacturers typically spin E-glass yarns to measure between 6 and 9 microns in diameter. These fine fibers provide exceptional vibration resistance. They also deliver robust mechanical strength across wide areas. You can rely on this tightly woven E-glass structure for thermal integrity up to 550°C. The specific weave pattern further enhances dimensional stability. It prevents stretching or sagging during prolonged thermal exposure.
Coating Material (Silicone): The silicone elastomer layer adds a distinct functional barrier. It actively protects against aggressive chemicals, liquid water, and surface abrasion. Silicone utilizes high-energy siloxane bonds. These specific chemical bonds remain highly stable under intense thermal stress. They allow the coating to maintain continuous operation between 260°C and 287°C. The coating process ensures deep impregnation into the top layer of the fiberglass weave. This prevents delamination during heavy flexing.
Claim vs. Fact (Myth-Busting): A common misconception constantly plagues the insulation industry. Many engineers wrongly assume a thicker silicone coating automatically increases fire resistance. In reality, increasing the organic silicone mass can actually reduce overall flame retardancy. The standard self-extinguishing time remains optimized at 3 to 10 seconds for standard weights. Adding more silicone simply adds combustible mass to the matrix. Engineers should always select coating thickness based on environmental wear. They should never increase thickness solely for fire protection purposes.
You must look beyond basic thermal specs to understand the true business value. Single-sided variants offer massive operational and cost advantages over double-sided or PTFE options.
Manufacturing & Fabrication Ergonomics: Consider the daily workshop experience for your production staff. Single-sided fabrics lay perfectly flat on large cutting tables. They drape easily over complex, irregular mechanical components. The uncoated fiberglass side remains completely dry and non-tacky. This physical trait prevents frustrating snagging on industrial sewing machines. Operators can push material through heavy-duty needles much faster. Consequently, your production lines will run significantly faster. This greatly reduces your overall labor costs per unit.
Weight & Flexibility Profile: You will find superior cold-weather performance here compared to alternatives. Traditional PTFE often becomes brittle and cracks in freezing conditions. Single-sided silicone variants easily maintain low-temperature flexibility down to -60°C. They also offer substantial weight savings across large installations. Double-coated heavy-duty alternatives add unnecessary bulk to every square meter. Lighter materials directly reduce structural strain on piping systems. Furthermore, they lower your bulk shipping and handling costs.
Cost-to-Performance Ratio: Paying for a secondary protective coating often wastes valuable capital. Consider the internal face of a standard removable insulation jacket. It only touches dry internal insulation matting. It never faces rain, oil drips, or UV exposure. Therefore, it needs absolutely no weatherproofing. Choosing a single-sided option directly optimizes your procurement budget. It eliminates spending on features you will never actually use in the field.
To make an informed purchase, you must examine the specific technical data. Hard metrics provide the foundation for any sound engineering decision.
Silicone boasts impressive physiological inertia. This specific chemical property means it strongly resists degradation from harsh environmental factors.
UV Resistance: The material easily withstands constant, direct solar ultraviolet exposure without cracking.
Ozone Resistance: It actively repels ozone degradation near high-voltage equipment.
Oxidation Protection: The coating prevents oxygen-driven breakdown over long periods.
Certain advanced industrial formulations provide an expected outdoor exposure lifespan of up to 10 years. You can deploy it confidently in harsh exterior climates ranging from offshore rigs to desert solar farms.
This material brings excellent cross-functional value to complex engineering projects. It works brilliantly for industrial electrical applications. High-quality Silicone Coated Fiberglass Fabric offers a dielectric constant ranging closely from 3 to 3.2. Furthermore, it delivers a highly reliable breakdown voltage of 20 to 50 KV/MM. These precise electrical metrics make it highly suitable for HVAC systems. It also serves perfectly as a flexible high-voltage electrical barrier in switchgear rooms.
We must exercise absolute risk transparency regarding chemical exposure in industrial environments. The fabric shows excellent, long-term resistance to weak acids and common industrial lubricating oils. However, you must explicitly avoid specific aggressive environments. Do not deploy this material near concentrated acids. It will rapidly degrade when placed around chlorinated solvents. Most importantly, keep it strictly away from aromatic hydrocarbons like toluene and xylene. These chemicals actively break down the siloxane bonds.
Chemical Category | Compatibility Level | Engineering Recommendation |
|---|---|---|
Weak Acids & Alkalis | Excellent | Safe for continuous exposure and general splash protection. |
Industrial Oils & Lubricants | High | Ideal for engine room covers and hydraulic line shielding. |
Concentrated Acids | Poor | Strictly avoid deployment. Use specialized PTFE instead. |
Aromatic Solvents (Toluene, Xylene) | Severe Degradation Risk | Do not use under any circumstances. Coating will dissolve. |
Engineers utilize this material across several critical industrial sectors. We can map the specific material properties directly to these diverse use cases.
Removable Thermal Insulation Covers & Jackets: This serves as the quintessential application for the single-sided variant. Manufacturers tailor these jackets for complex valves and pipe fittings. The smooth silicone side always faces outward. It actively repels industrial oil, water, and harsh weather conditions. Meanwhile, the raw fiberglass side faces inward. It tightly grips the interior insulation batting, preventing slip. It safely withstands direct, intense component heat radiating from the metal surfaces.
Welding Curtains & Fire Screens: Facilities frequently utilize this fabric for light-to-medium vertical spark protection. The flexible material safely deflects grinding sparks and minor welding slag. Workers hang these screens around automated welding bays to protect nearby equipment. However, operations involving heavy molten metal splash require different, much thicker specs. We always advise selecting heavy-duty variants exceeding 1100gsm (50oz) for extreme molten splash scenarios.
Fabric Expansion Joints & Flexible Duct Connectors: These flexible components face punishing mechanical and thermal conditions daily. They absorb aggressive mechanical vibration in massive industrial HVAC systems. They effectively resist hot, corrosive exhaust gases passing through the ducts. The coated material successfully maintains crucial airtightness. It achieves this impressive seal while surviving thousands of extreme thermal expansion cycles over its long operational lifespan.
Bottom-of-funnel buyers need clear, actionable shortlisting logic. Follow this four-step procurement framework to guarantee optimal material selection.
Step 1: Define Temperature Thresholds. Always map your peak temperature spikes against your continuous operating temperatures. Ensure your active facility zones never breach the strict 287°C continuous coating limit. Short, momentary spikes might be tolerated. However, constant exposure above 287°C permanently degrades the protective elastomer layer.
Step 2: Determine GSM & Thickness (Mechanical Load). You must carefully match the fabric weight to the physical application demands. A lighter 400gsm fabric suits basic light indoor static covers perfectly. Conversely, a heavier 1000gsm variant handles high physical stress far better. Choose heavier weights to combat severe abrasion risks and intense outdoor wind loads.
Step 3: Verify Compliance Standards. Look for specific manufacturer data aligning with critical global safety protocols. Request official documentation verifying EN 13501-1 or NFPA fire standards. Check for specific Health, Safety, and Environment (HSE) requirements. Modern factories often mandate non-toxic certifications and extremely low-smoke generation during accidental combustion events.
Step 4: Implementation & Fastening Realities. Assess exactly how your fabrication team will integrate the final material. Single-sided fabric easily supports heavy industrial sewing techniques. It also works flawlessly with tough metal riveting, bolted flange assemblies, and mechanical clamping. It handles these harsh fastening methods without any serious risk of localized coating delamination.
Our technical analysis reveals a highly targeted engineering solution. Single side silicone coated fiberglass fabric effectively eliminates costly over-speccing in modern facilities. It caters perfectly to manufacturers needing unidirectional weather and chemical protection. It pairs this external environmental defense with incredibly reliable internal thermal shielding. This balanced approach optimizes both your workshop fabrication efficiency and your annual procurement budgets.
To move forward effectively, we recommend these action-oriented next steps:
Conduct a thorough environmental audit of your specific production facility. Pay special attention to potential chemical exposures, especially involving aromatic solvents.
Map out the precise surface temperature gradients of your target machinery and piping systems.
Request a physical material sample directly from your manufacturer. Use it to test physical drapability and sewing machine compatibility within your own production layout.
A: Yes, it does. The core thermal resistance comes entirely from the internal E-glass fiberglass base. The external silicone coating simply dictates environmental protection. Therefore, both single and double-sided variants offer identical core heat shielding up to 550°C.
A: The single-sided fabric easily accommodates standard industrial fabrication methods. Manufacturers commonly use heavy-duty industrial sewing threads like Kevlar or stainless steel thread. For structural installations, you can securely fasten it using metal rivets and bolted flanges without tearing.
A: Yes. Unlike raw fiberglass, the silicone coating binds loose fibers securely on one side. This significantly reduces airborne particulates and skin irritation. However, we still highly recommend standard HSE personal protective equipment like gloves and safety glasses during cutting.
A: Standard industrial grades are not suitable for food contact. They contain specific flame retardants and industrial curing agents. FDA-compliant applications require a specialized, certified food-grade silicone formulation and rigorous cleanroom processing.
